51 16 225 Removing and installing/replacing decorative trim on center console on left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TRIM FROM CUP HOLDER .
Remove REAR STORAGE BOX .
E71:

Remove knee pad

Release screws (1).

Lift decorative trim on center console (2) up and out of center console and feed towards rear out of guide (4).

Installation:

Replace faulty retainers (3).

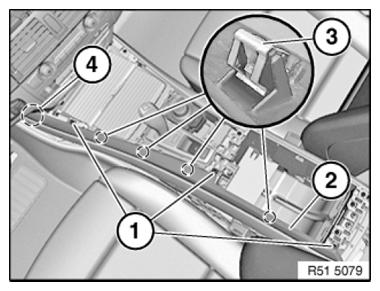

Fig 1: Identifying Centre Console, Guide, Retainers And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) and (2) on decorative trim (3) must not be damaged.

Guides (1) and (2) must be correctly positioned in center console during fitting.

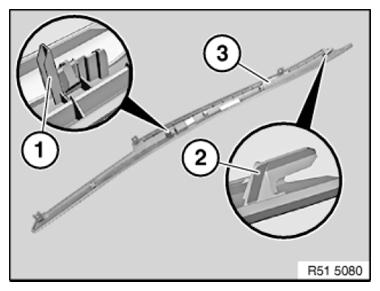

Fig 2: Identifying Decorative Trim And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
