51 16 193 Removing and installing/replacing cover on front cupholder

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

Necessary preliminary tasks

Remove CENTRE CONSOLE COVER (GEAR SELECTOR SWITCH) .
Release CENTRE CONSOLE .

Unlock latch mechanisms (2) with special tool 00 9 323 .

Feed out cover on cupholder (1) towards rear.

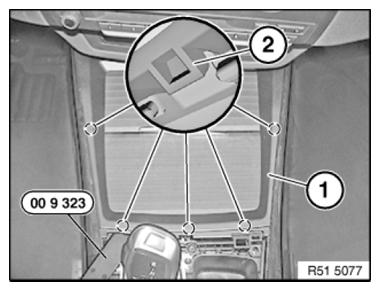

Fig 1: Removing Latch Mechanisms Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

First feed cover on cupholder into guides (1), then press down onto center console.

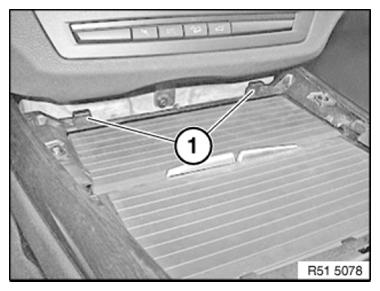

Fig 2: Identifying Centre Console Guides

Courtesy of BMW OF NORTH AMERICA, INC.
