51 47 440 Removing and installing or replacing rear carpet on seat pan
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work
- Remove all door sill cover strips . See 51 47 030 REMOVING AND INSTALLING/REPLACING REAR (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP or 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP.
- Remove front seats . See 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) , 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT , 52 16 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT or 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/SEMI-ELECTRIC) .
- Remove complete center console . See 51 16... REMOVING AND INSTALLING/REPLACING CENTRE CONSOLE FOR 3RD SEAT ROW or 51 16 165 REMOVING AND INSTALLING/REPLACING COMPLETE CENTRE CONSOLE .
- Remove rear seat . See 52 26 005 REMOVING AND INSTALLING / REPLACING REAR SEAT or 52 26 000 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR SEAT (FOR 3RD SEAT ROW) .
- Remove FOOTWELL LIGHTS (on rear floor trim).
- Remove TRIM ON C-PILLAR at bottom right and left.
Version with bass speaker:
- Remove CENTRAL BASS SPEAKER TRIM on left/right.

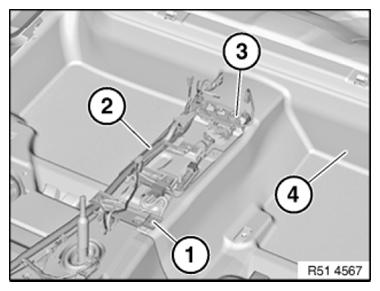

Remove holder (1).
Pull back cable (2) with cable holder (3).
Feed out carpet (4).
Installation note:
Make sure openings for air duct and attachment points are correctly positioned.
Remove air duct on left and right.
