51 47 000 Removing and installing/replacing front (inside) left or right entrance cover strip

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

NOTE: To remove the footwell side trim from the A-pillar, it is only necessary to detach entrance cover strip in the front area. Preliminary tasks are not required.

Necessary preliminary tasks

Remove PANEL FOR DOOR PILLAR .
Remove entrance cover strip at rear.

NOTE: Front seat is shown removed for purposes of clarity.

Detach mucket (1) in area of entrance cover strip (2).

Unclip entrance cover strip (2) with special tool 00 9 317 starting at front.

Installation:

If necessary, replace faulty retainer (3).

If necessary, release clips (4) from vehicle.

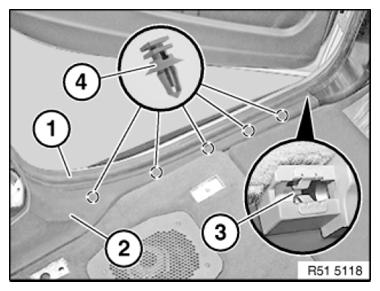

Fig 1: Identifying Mucket, Cover Strip, Retainer And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release entrance cover strip (1) at clips (2) and feed out.

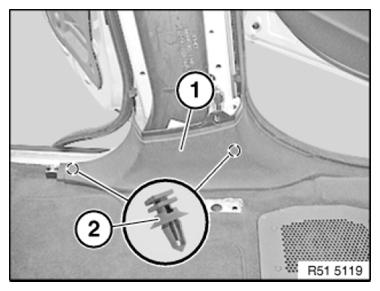

Fig 2: Identifying Cover Strip And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Lug (1) must not be damaged or missing; if necessary, replace entrance cover strip (3).

If necessary, replace faulty clips (2).

Fit missing clips on entrance cover strip (3).

Fit entrance cover strip (3) with preinstalled clips (2).

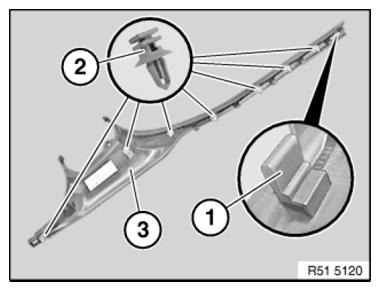

Fig 3: Identifying Cover Strip, Preinstalled Clips And Faulty Clips

Courtesy of BMW OF NORTH AMERICA, INC.
