51 43 230 Removing and installing/replacing trim on C-pillar at bottom left or right (3rd seat row)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Slide cover (1) upwards.

Release screw (2) underneath.

Installation:

Replace screw (2).

Tightening torque 72 11 21AZ .

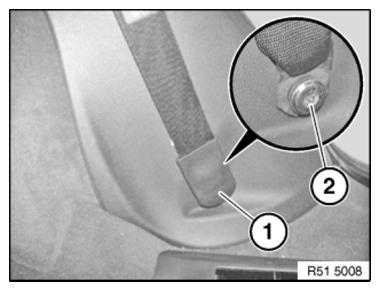

Fig 1: Identifying C-Pillar Trim Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Detach mucket (1) in area of trim (4).

Lever out recessed handle (2) and release screw underneath.

Detach side trim panel (4) at clip (5).

Release side trim panel (4) in direction of arrow from clips (3) and remove.

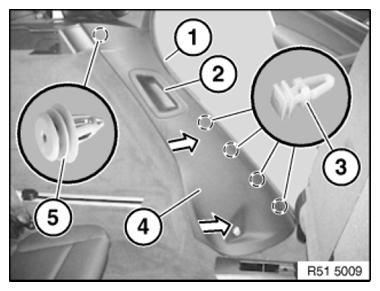

Fig 2: Removing Side Trim Panel From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).

Guides (2) must not be damaged.

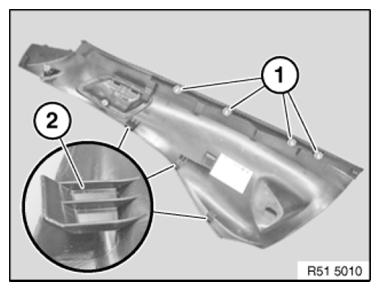

Fig 3: Identifying Side Trim Panel Clips And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
