51 47 135 Removing and installing/replacing left or right lashing rail in luggage compartment floor

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove luggage compartment wheel arch trim . See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM (WITH 3RD SEAT ROW) , 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM (WITH 3RD SEAT ROW) or Removing and installing/replacing left luggage compartment wheel arch trim .

Lift off cover (1).

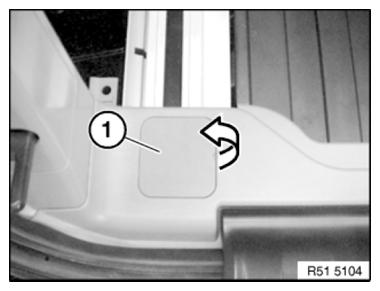

Fig 1: Lifting Off Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1).

Release screws (2).

Tightening torque 51 71 5AZ .

Feed out lashing rail (3) towards front.

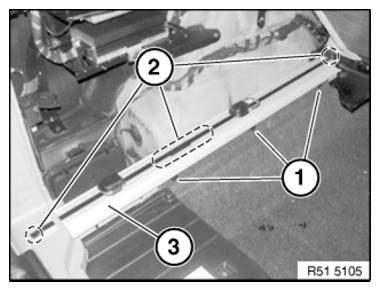

Fig 2: Identifying Lashing Rail, Clips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
