51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim (with 3rd seat row)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove STORAGE COMPARTMENT IN LUGGAGE COMPARTMENT .
Remove TRIM ON C-PILLAR AT BOTTOM .
Remove PANEL FOR LUGGAGE COMPARTMENT AT BOTTOM .

Release clips (1).

Feed out luggage compartment wheel arch trim (2).

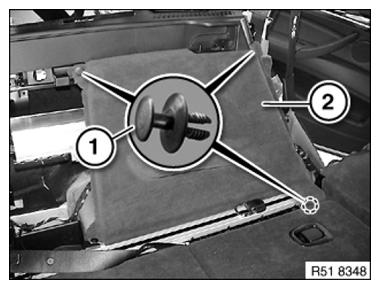

Fig 1: Identifying Luggage Compartment Wheel Arch Trim And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

Remove STORAGE COMPARTMENT IN LUGGAGE COMPARTMENT .
Remove TRIM ON C-PILLAR AT BOTTOM .
Remove PANEL FOR LUGGAGE COMPARTMENT AT BOTTOM .

Release clips (1).

Feed out luggage compartment wheel arch trim (2).

Fig 1: Identifying Arch Trim And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
