41 62 043 Removing And Installing/Replacing Hinge For Tailgate
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL
Carry over schematic diagram to the relevant vehicle type.
Necessary preliminary work:
- Remove TAILGATE
- Remove tension spring/spindle drive. See REMOVING LEFT TENSION SPRING FOR REAR LID , REMOVING LEFT SPINDLE DRIVE , or REMOVING RIGHT SPINDLE DRIVE .
- Remove PANEL FOR STORAGE SHELF
- Remove luggage compartment wheel arch panel. See REMOVING LEFT LUGGAGE COMPARTMENT WHEEL ARCH PANEL or REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

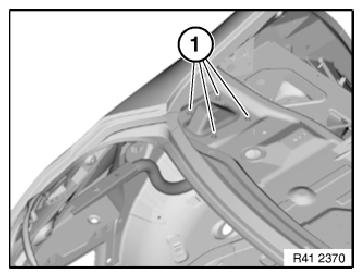

Open screw connections (1) on vehicle.
Remove hinge.
Installation note:
Tightening torque 41 62 2AZ .
ADJUST hinge together with tailgate.
