41 62 000 Removing And Installing Rear Lid
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Necessary preliminary tasks:
- Remove PANEL FOR REAR LID .
- Disconnect all cable plug connections and pull wiring harness out of rear lid.
Carry over the work step shown symmetrically to the other side of the vehicle.

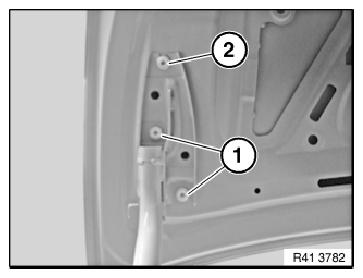

Release screws (1).
Slacken screw (2) and remove rear lid with a second person.
Tightening torque 41 62 1AZ .
Installation:
Install rear lid at screw locations on hinge.
If necessary, ADJUST TRUNK LID .
If reversing camera optional equipment installed
Calibrate reversing camera.
