41 62 014 Adjusting Tailgate

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not damage adjoining body components!

Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

Read contents of BODY, GENERAL .

Observe 41 00... BODY GAP DIMENSIONS .

The tailgate must be provided with all attachment parts for correct adjustment.

Version with automatic tailgate activation:

Deactivate automatic tailgate activation by DISCONNECTING PLUG CONNECTIONS on control unit.

IMPORTANT: Risk of damage to spindle drive: only move tailgate slowly by hand.
If necessary, REMOVE SPINDLE DRIVE

Necessary preliminary tasks:

Remove TRIM PANEL FOR REAR LID

Slacken nuts (1) and (2) until such stage that the tailgate can still be moved.

Adjust tailgate laterally and longitudinally.

Tightening torque 41 62 1AZ .

When the tailgate is closed, the striker must not touch or scrape against the tailgate lock. If necessary, remove striker.

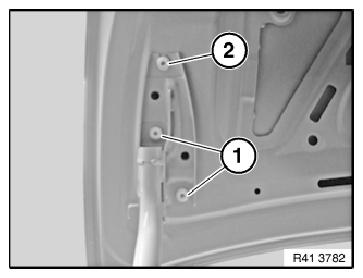

Fig 1: Identifying Tailgate Nuts

G08511221

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting height of tailgate in relation to side panel:

REMOVE TENSION SPRING
Remove sealing cap from opening (1).

WARNING: Danger of injury!
Secure tailgate against dropping down.

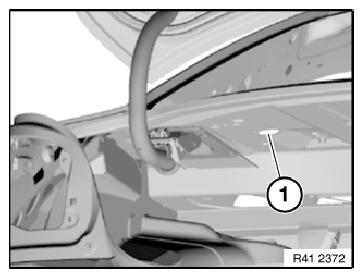

Fig 2: Identifying Sealing Cap Opening

G08511222

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Parcel shelf is shown removed for purposes of clarity.

Slacken nut (1) with a suitable tool (SW13) until hinge can be moved.

Adjust height of tailgate.

Tightening torque 41 62 3AZ .

Adjust TAILGATE CATCH .

Adjust STOP PAD .

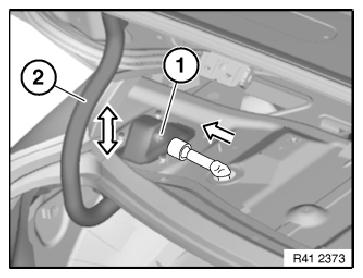

Fig 3: Adjusting Tailgate Catch And Stop Pad

G08511223

Courtesy of BMW OF NORTH AMERICA, INC.

After setting

Tighten all screws and nuts to specified torque.
Touch up unpainted surfaces in the appropriate color.
If reversing camera optional equipment installed:

Calibrate reversing camera.
