Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: A 2nd person is required to help remove and install the backrest.

Unlock backrest and tilt forward.

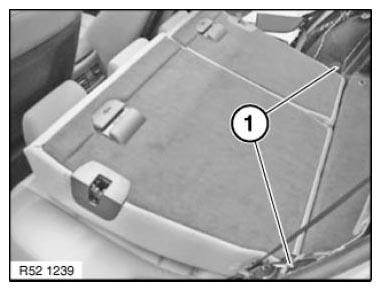

Release screws (1).

Tightening torque 52 26 01AZ .

Fig 1: Identifying Screws
G06979497Courtesy of BMW OF NORTH AMERICA, INC.

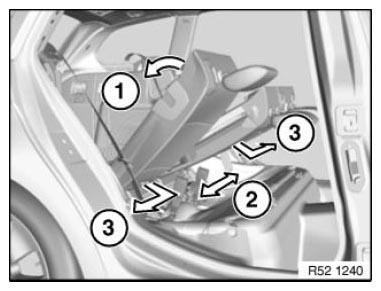

  1. Raise backrests slightly
  2. Simultaneously pull left and right backrests by jerks and jolts out of center mount
  3. Remove backrests
Fig 2: Removing Backrests
G06979498Courtesy of BMW OF NORTH AMERICA, INC.
