52 26 005 Removing and installing or replacing rear seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Forcibly pull rear seat upwards on left and right sides.

Installation:

Feed seat belt buckles (1) into openings in rear seat.

Fig 1: Feeding Seat Belt Buckles Into Openings In Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2) on middle seat belt anchor fitting.

Tightening torque 72 11 22AZ .

Installation:

Pin (3) determines the installation position and prevents the anchor fitting (1) from turning.

Feed anchor fitting out of rear seat.

Lift out rear seat.

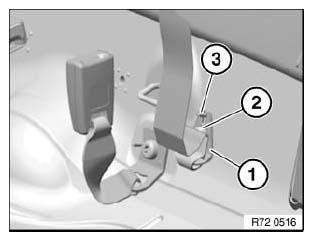

Fig 2: Identifying Anchor Fitting, Screw And Pin

Courtesy of BMW OF NORTH AMERICA, INC.
