52 26 008 Removing and installing/replacing rest side section on left or right rear seat backrest
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Unlock rear seat backrest and tilt forward.
Pull seat belt to middle and place over head restraint.

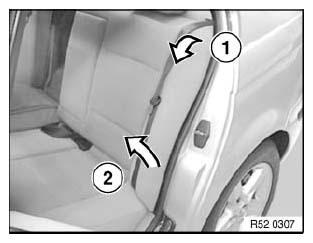

Pull top backrest side section forwards (1) and pull out towards top (2).
If necessary, replace faulty clip (2) from backrest side section:
Unlock catches (1) on left and right and detach clip (2) from side section (3).
If necessary, replace faulty clip (1) from body:

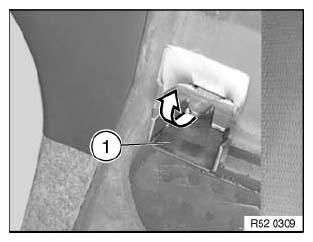

Pull clip (1) forwards out of body.
Installation:

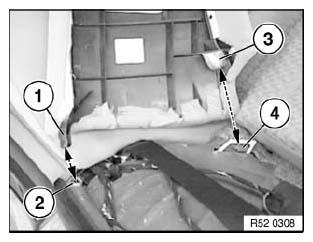

Push guide (1) into mounting (2) and guide (3) into mounting (4).
