51 16... Removing and installing or replacing retaining ring on left or right door mirror

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove COVER CAP FROM DOOR MIRROR
Remove TRIM FROM DOOR MIRROR
Remove DRIVE for electrically adjustable door mirror

Release screws (1) on retaining ring (2).

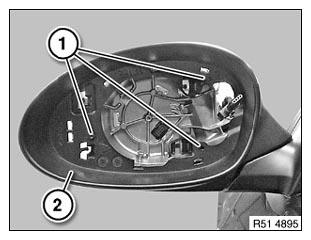

Fig 1: Identifying Door Mirror Screws And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip catch (1) and remove retaining ring (2).

Fig 2: Identifying Catch And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catch (1) and guide (2) must not be damaged.

Locators (3) for multitooth catches must not be damaged.

Fig 3: Identifying Catch And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
