51 16... Removing and installing/replacing cover cap on left or right door mirror

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove MIRROR GLASS

NOTE: Cover cap is secured without play by four multitooth catches (1) on retaining ring (2).

Secure cover cap against falling off.

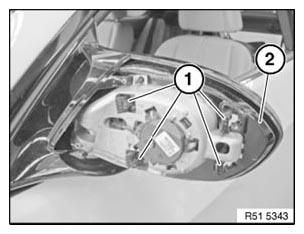

Fig 1: Identifying Multitooth Catches And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock multitooth catches (1) with a screwdriver.

Unclip cover cap forwards from retaining ring (2) and remove.

Installation:

Multitooth catches (1), catch (2) and guides (3) must not be damaged.

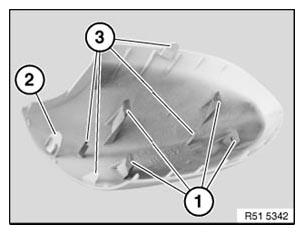

Fig 2: Identifying Catches, Catch And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locators (1) on retaining ring (2) must not be damaged.

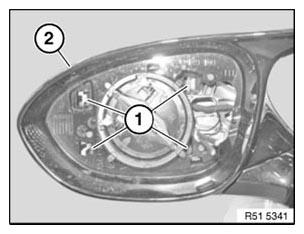

Fig 3: Identifying Locators And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.
