64 53 550 Removing and installing or replacing condenser for air conditioner

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Refrigerant drawn off from A/C system. Refer to 64 50 009 Drawing off, evacuating and filling A/C system (R 134a) .

Remove radiator. Refer to 17 11 000 REMOVING AND INSTALLING RADIATOR (S62) .

Remove cassette. Refer to 17 11 530 Removing and installing cassette (condenser for air conditioner) .

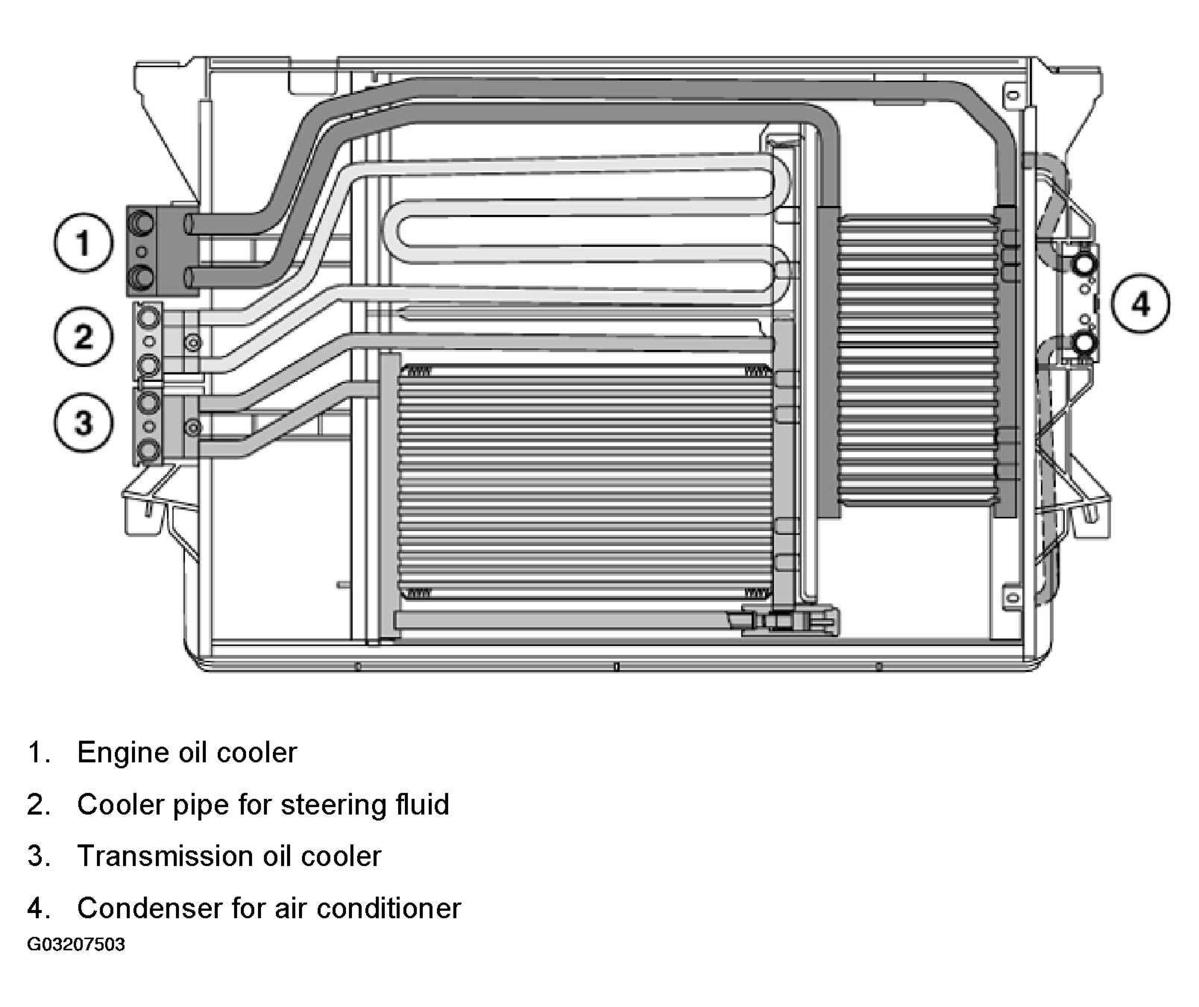

Fig 1: Locating Coolers

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip all coolers from cassette.

Unclip condenser (1) and remove in direction of arrow.

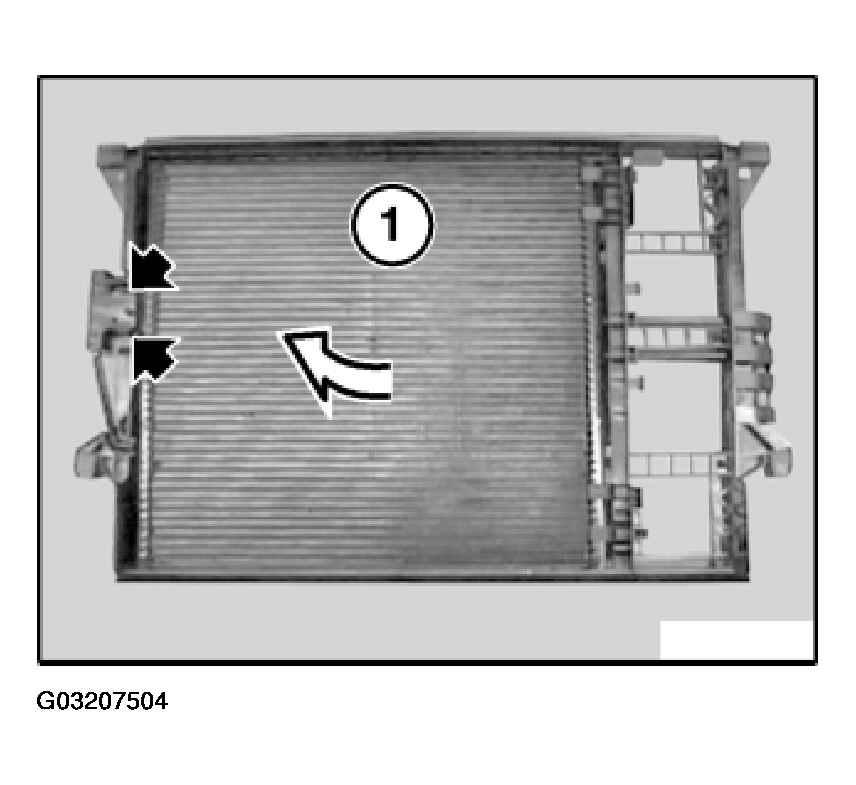

Fig 2: Removing Condenser

Courtesy of BMW OF NORTH AMERICA, INC.
