17 11 530 Removing and installing cassette (condenser for air conditioner)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove radiator. Refer to 17 11 000 REMOVING AND INSTALLING RADIATOR (S62) .

NOTE: The condenser for the A/C system is integrated in the cassette.
At the same time, depending on the model of vehicle, the individual coolers for steering hydraulics, automatic transmission and engine oil are installed in the cassette.

Disconnect lines for power steering and if necessary engine and transmission oil coolers.

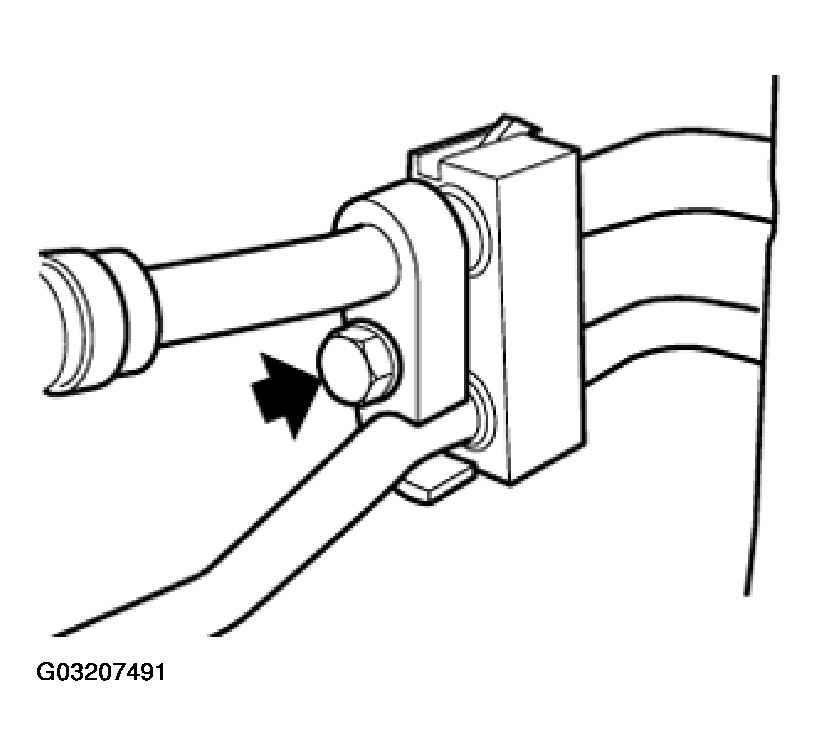

Fig 1: Disconnecting Lines For Power Steering

G03207491

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

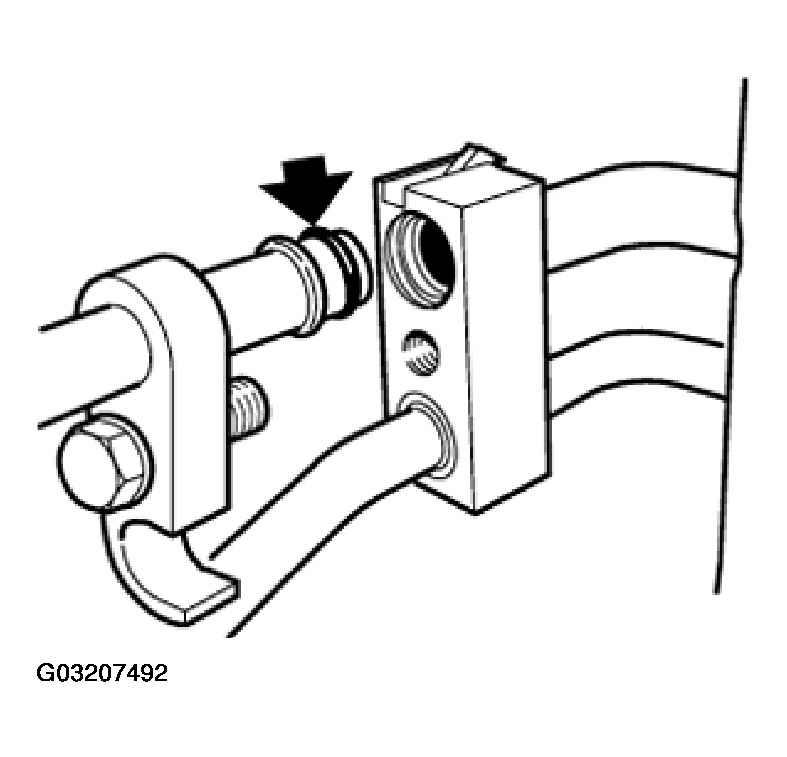

Fig 2: Installing Sealing Rings

G03207492

Courtesy of BMW OF NORTH AMERICA, INC.

Draw off refrigerant from A/C system. Refer to 64 50 009 Drawing off, evacuating and filling A/C system (R 134a) .

Remove lines from air conditioner.

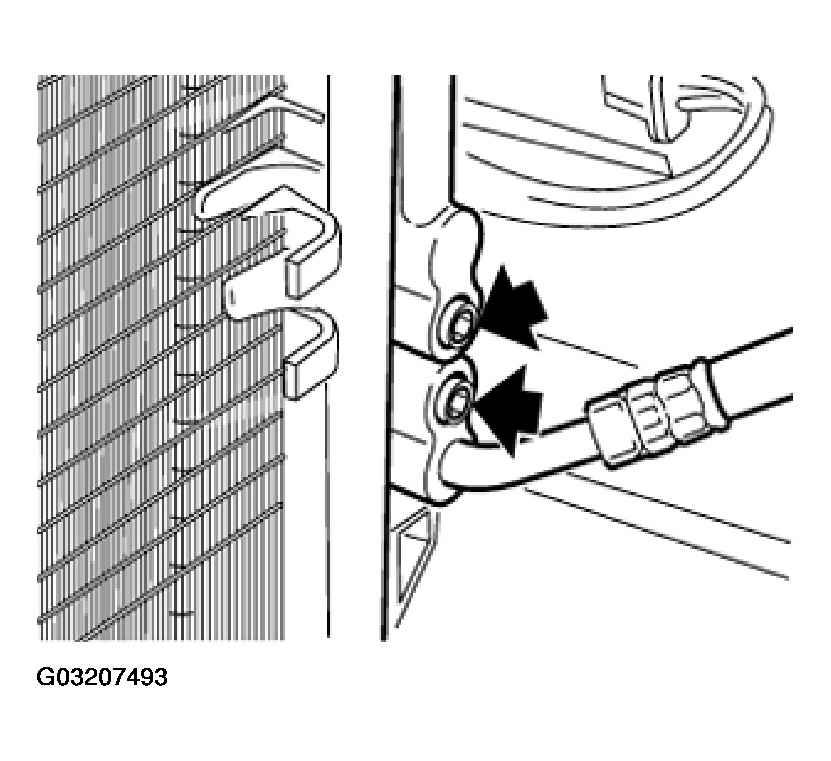

Fig 3: Removing Lines From Air Conditioner

G03207493

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

Evacuate and fill A/C system.

Tilt cassette backwards slightly and lift upwards to remove.

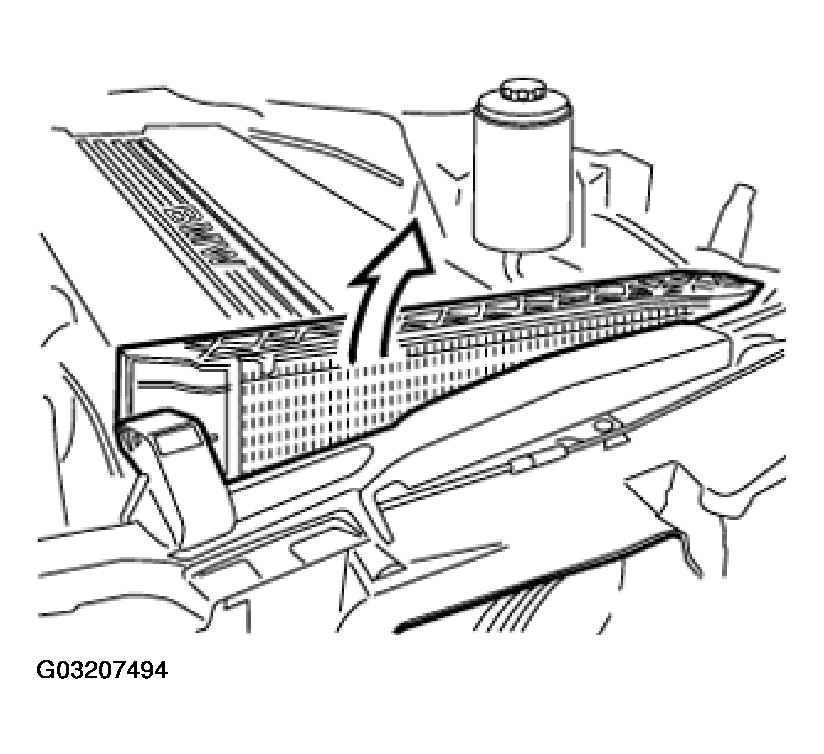

Fig 4: Removing Cassette

G03207494

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note rubber mounts on front wall.

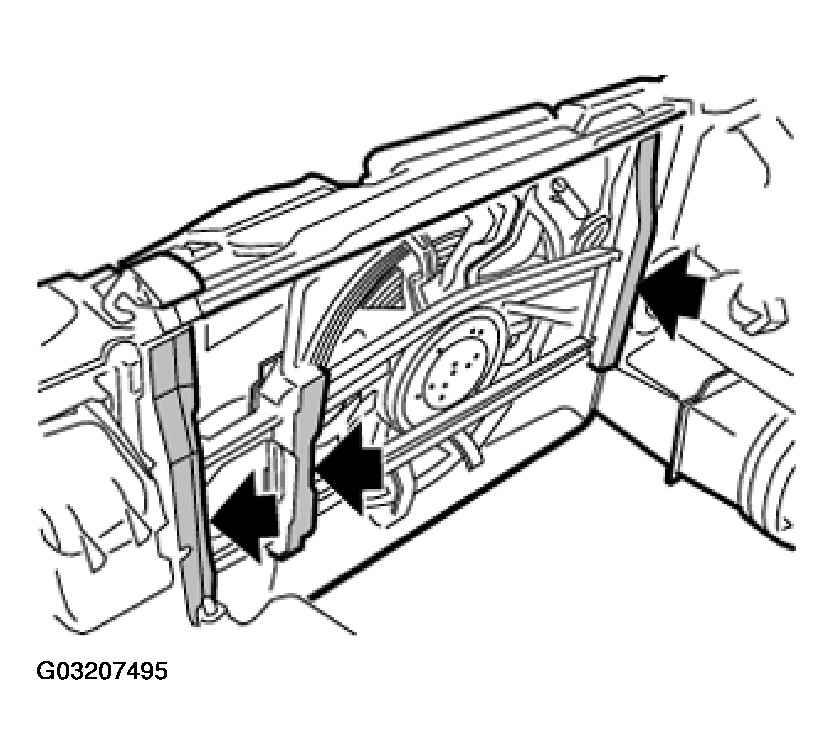

Fig 5: Identifying Rubber Mounts

G03207495

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check rubber mounts on left and right sides.

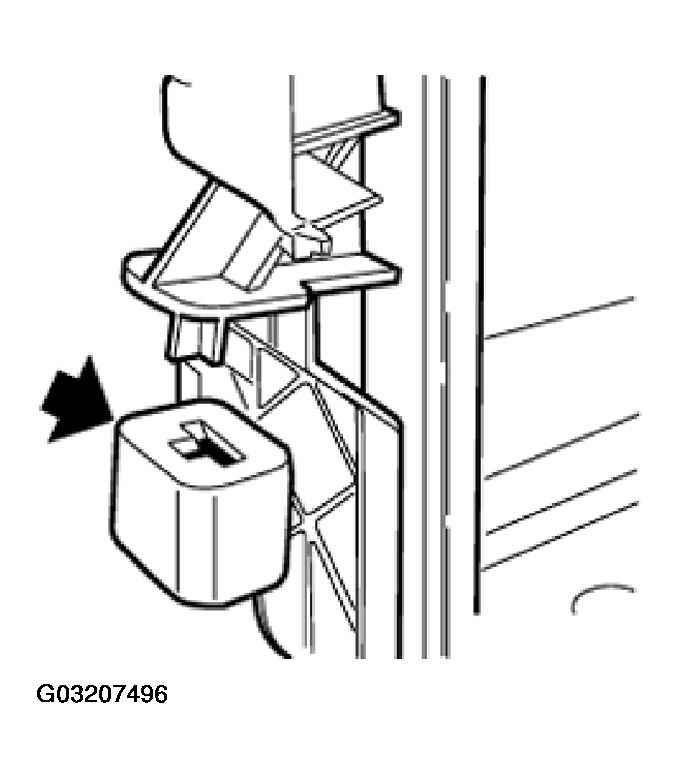

Fig 6: Checking Rubber Mounts

G03207496

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install cassette in left and right retainers and push forwards as far as it will go.

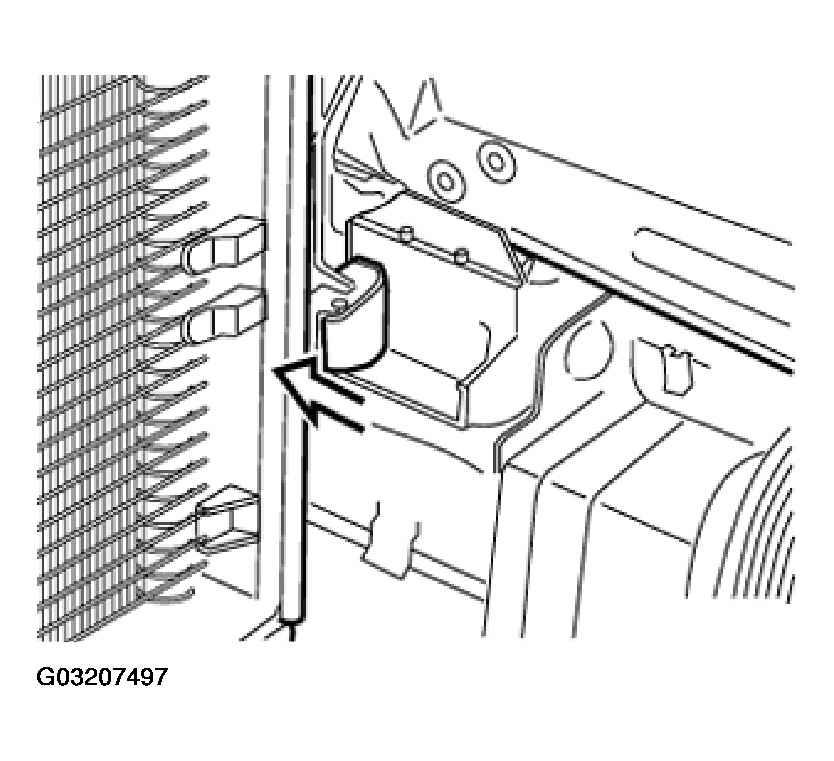

Fig 7: Installing Cassette

G03207497

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check rubber profile seals.

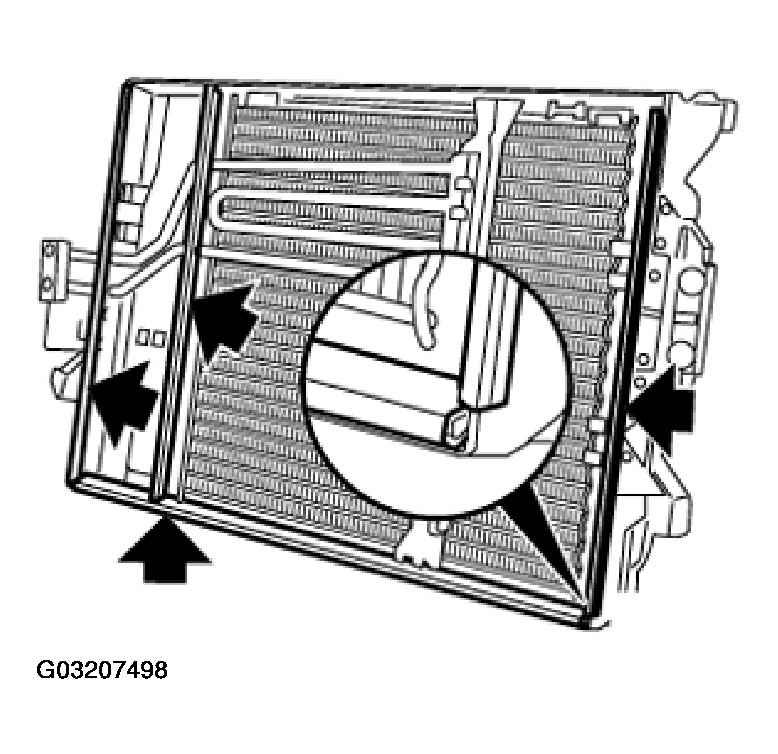

Fig 8: Checking Rubber Profile Seals

G03207498

Courtesy of BMW OF NORTH AMERICA, INC.
