63 13 150 Removing and installing/replacing front left or right turn signal flasher

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove front wheel arch cover (front section). Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .

Release cable strap (1).

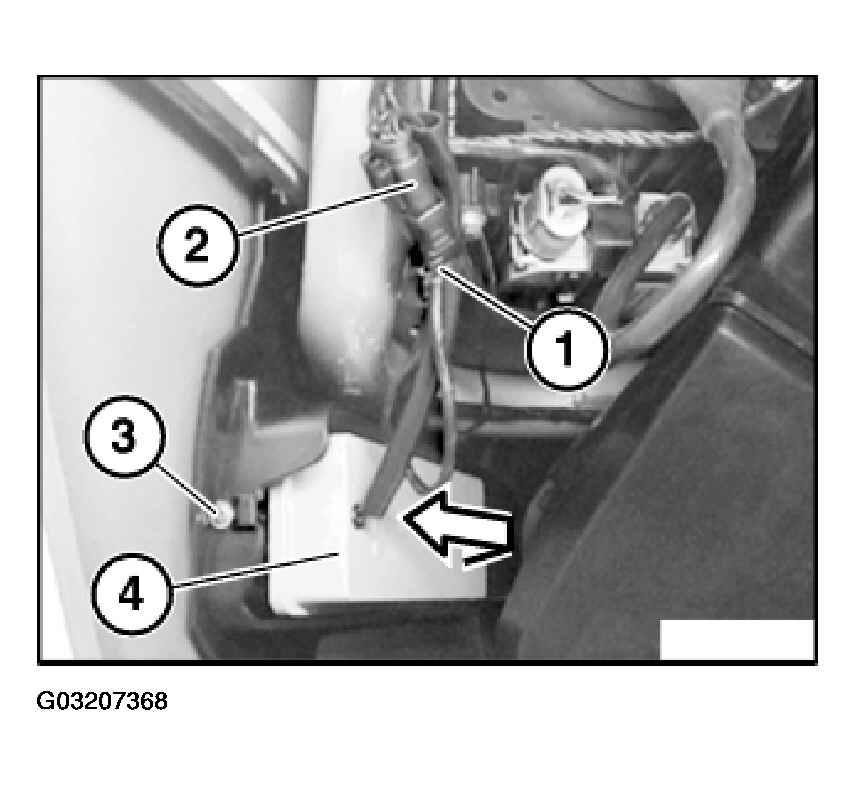

Fig 1: Removing Turn Signal Flasher

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2).

Release screw (3).

Pull out turn signal flasher (4) in direction of arrow.

Installation:

Feed turn signal flasher into guide.

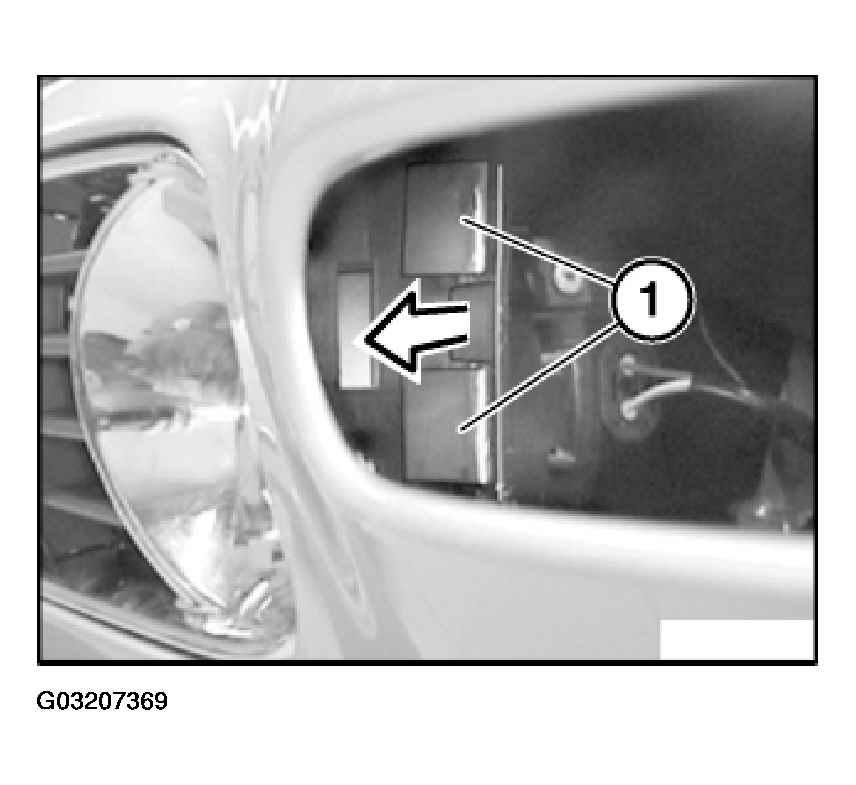

Fig 2: Feeding Turn Signal Flasher Into Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure retainers (1) are correctly seated.
