16 12 001 Removing and installing/replacing fuel level sensor for fuel gauge

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Draw off fuel from fuel tank. Refer to 16 00 005 Draining and filling fuel tank .

Remove screw cap with seal. Refer to 16 11 ... Removing and installing/replacing screw cap with rubber seal .

Press lock (1).

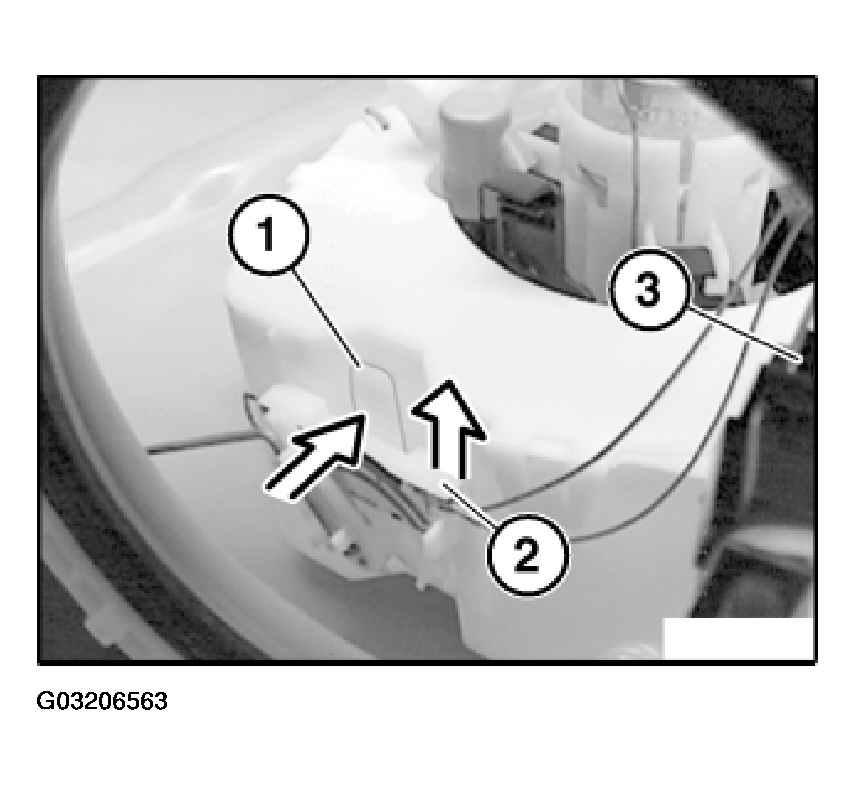

Fig 1: Pulling Up Fuel Level Sensor For Fuel Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

Pull fuel level sensor for fuel gauge (2) upwards.

Unfasten plug connections (3) and disconnect.

CAUTION: During installation, check that plug connections (1) are correctly seated.
Pull cable loop (2) until small and press towards rear.

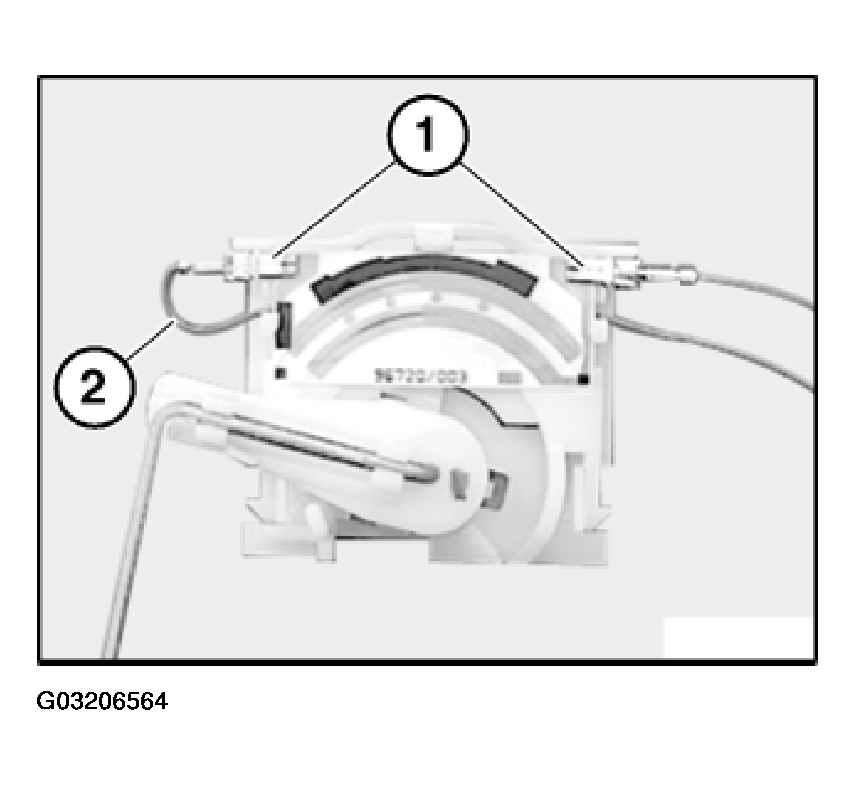

Fig 2: Pulling Cable Loop

Courtesy of BMW OF NORTH AMERICA, INC.
