16 11 ... Removing and installing/replacing screw cap with rubber seal

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Draw off fuel from fuel tank. Refer to 16 00 005 Draining and filling fuel tank .

Remove partition wall. Refer to 16 11 ... Removing and installing/replacing partition wall, retaining bracket and wheel arch trim .

Unfasten plug connection (1) and disconnect.

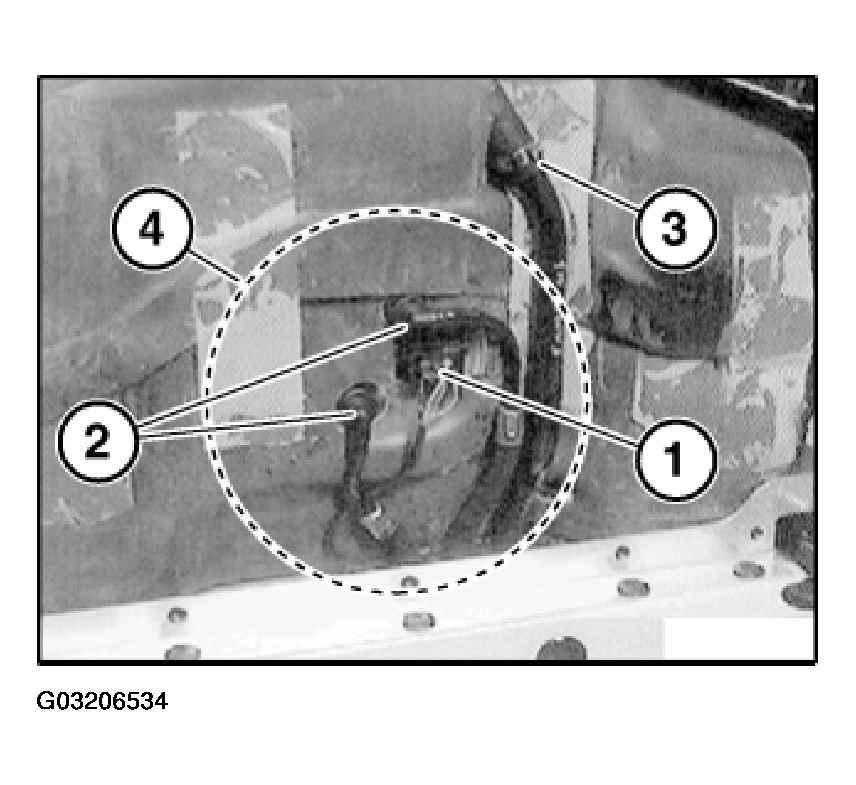

Fig 1: Identifying Plug ,Quick-Release Couplings And Hose Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release quick-release couplings (2) and detach.

Installation:

Check locking of both quick-release couplings by pulling, do not actuate release elements in the process.

Unfasten hose clip (3) and remove hose.

Installation:

Replace hose clamp (3) on vent hose.

Tightening torque 16 12 8AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

Cut open acoustic cover in area (4) of perforations and fold back.

NOTE: Secure folded-back acoustic cover with adhesive tape.

Release screw cap with special tool 16 1 020.

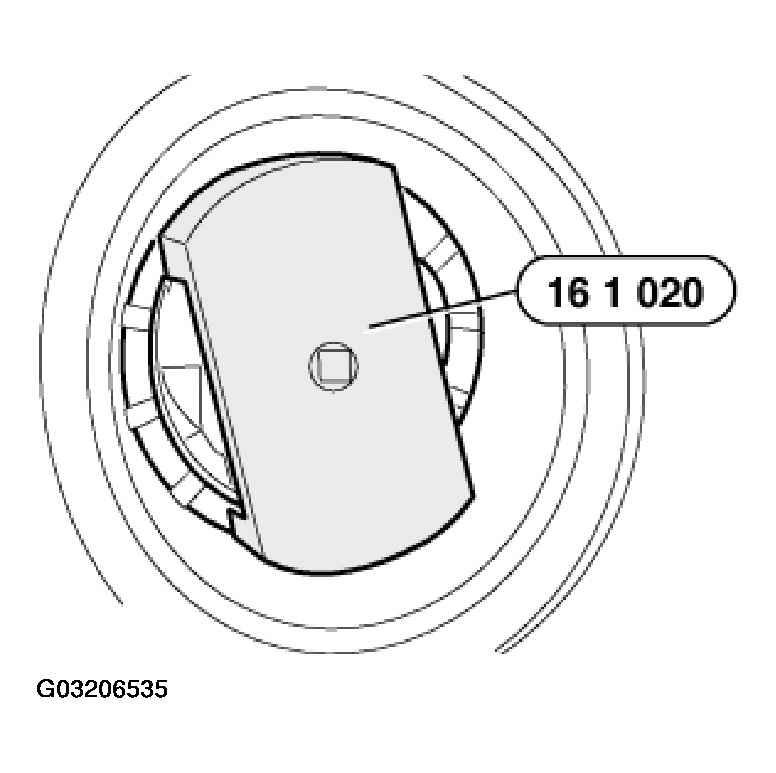

Fig 2: Releasing Screw Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace rubber seal, always lay rubber seal in fuel tank in so doing.

Tighten down screw cap to specified torque.

Tightening torque 16 14 2AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

Installation:

When tightening to torque:

notch on screw cap (1) must clearly be heard and felt to engage toothed segment (2) on tank.

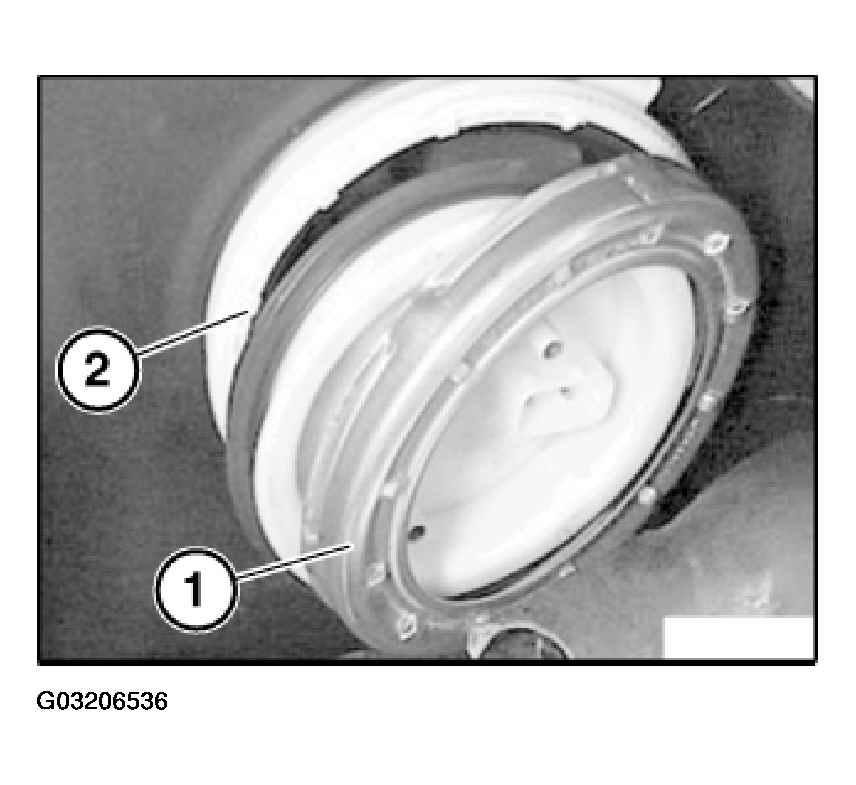

Fig 3: Identifying Screw Cap And Toothed Segment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

During installation, ensure lug (1) engages opening (2) in fuel tank.

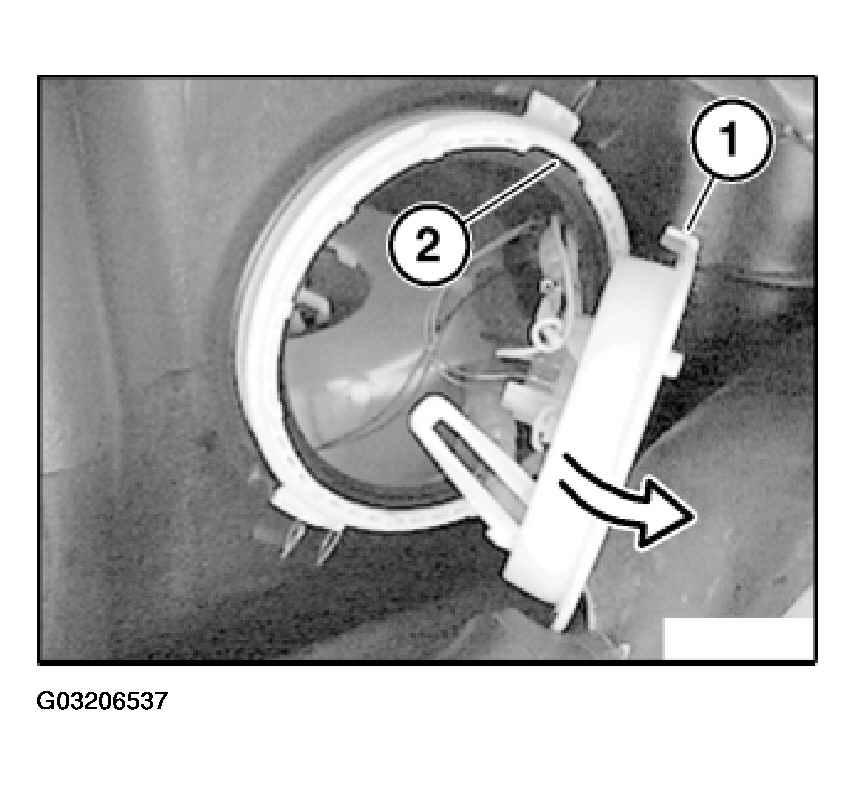

Fig 4: Identifying Lug

Courtesy of BMW OF NORTH AMERICA, INC.
