16 11 060 Removing and installing/replacing fuel filler pipe

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Draw off fuel from fuel tank. Refer to 16 00 005 Draining and filling fuel tank .

Remove partition wall. Refer to 16 11 ... Removing and installing/replacing partition wall, retaining bracket and wheel arch trim .

Unhook retaining strap from fuel filler flap.

Open cap and set to one side.

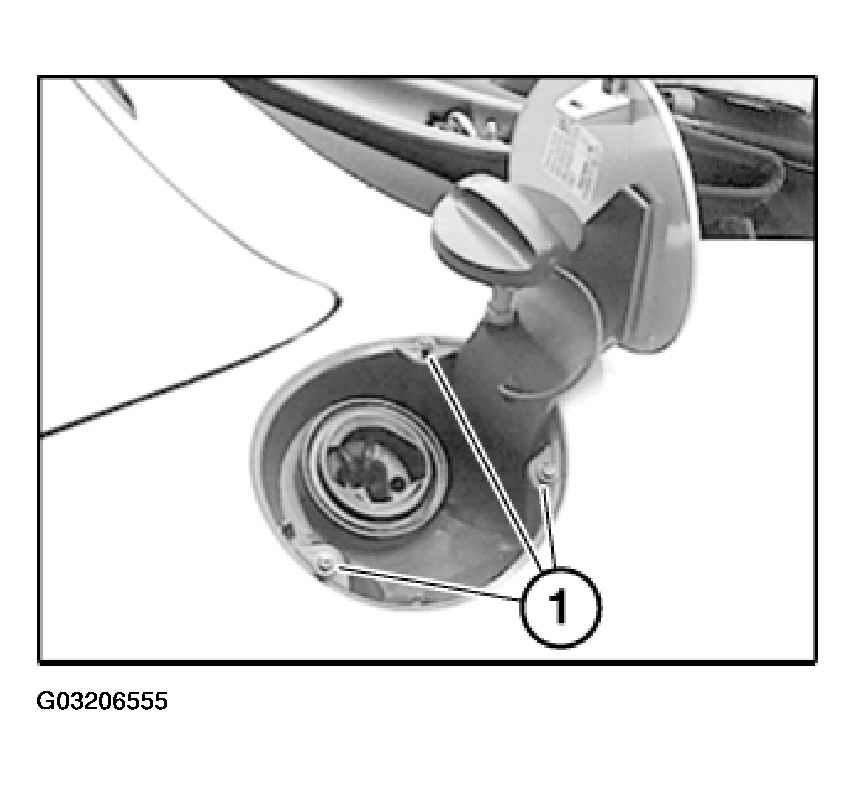

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear right wheel.

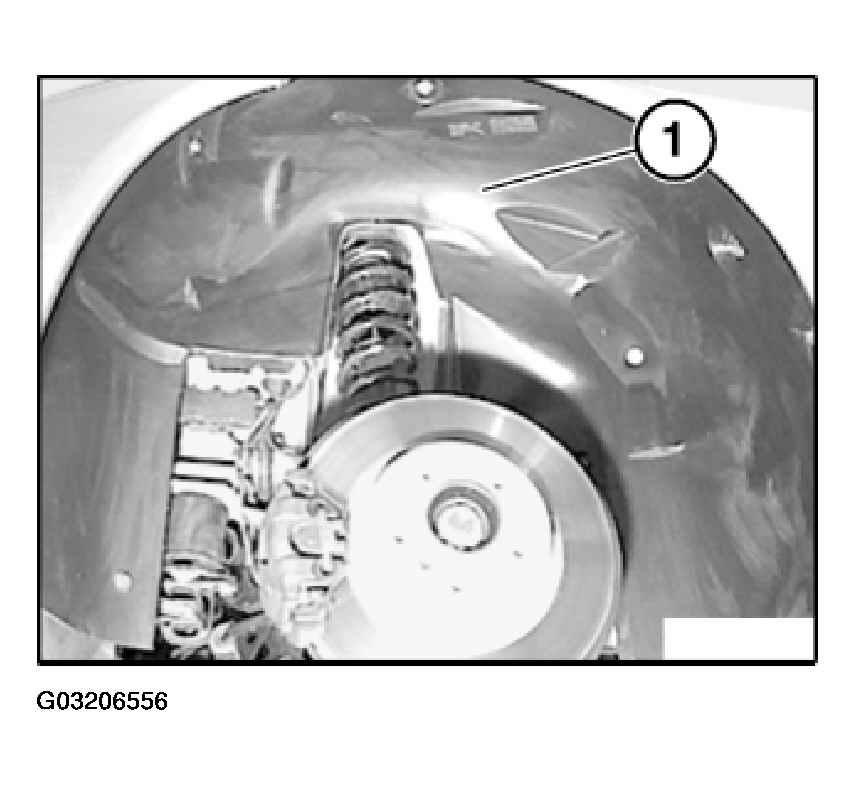

Remove wheel arch trim (1) at rear right.

Fig 2: Removing Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clip (1).

Fig 3: Replacing Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace hose clamp (1).

Tightening torque 16 12 9AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

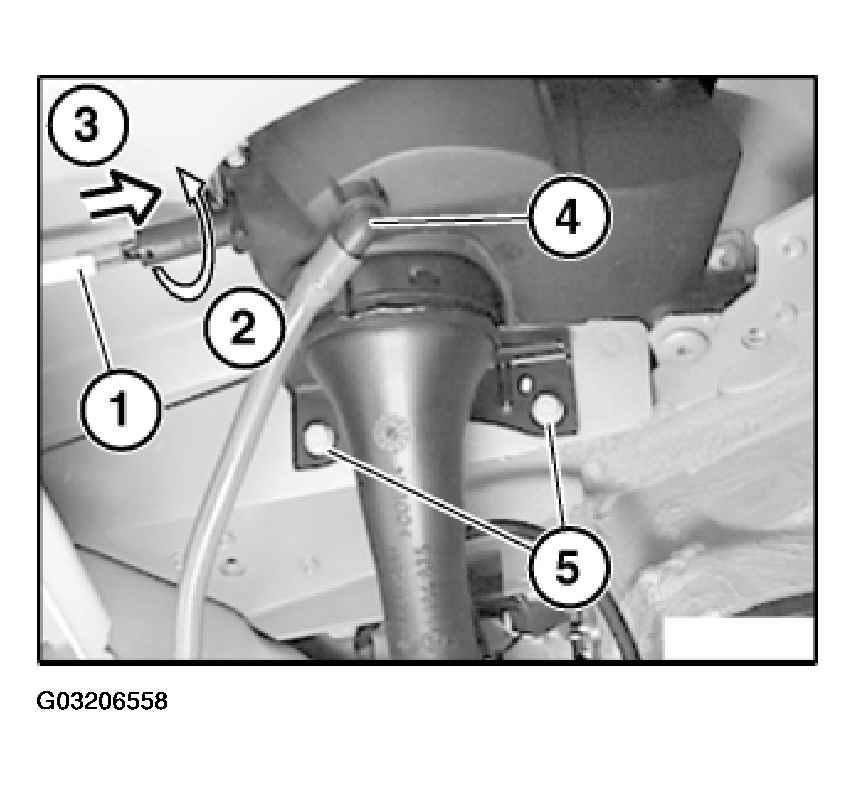

Unhook central locking Bowden cable (1).

Fig 4: Identifying Central Locking Bowden Cable, Central Locking Lock And Cover Pot

Courtesy of BMW OF NORTH AMERICA, INC.

Turn central locking lock (2) and press into cover pot (3).

Detach hose fitting (4) and do not lose sealing ring.

Release screws (5).

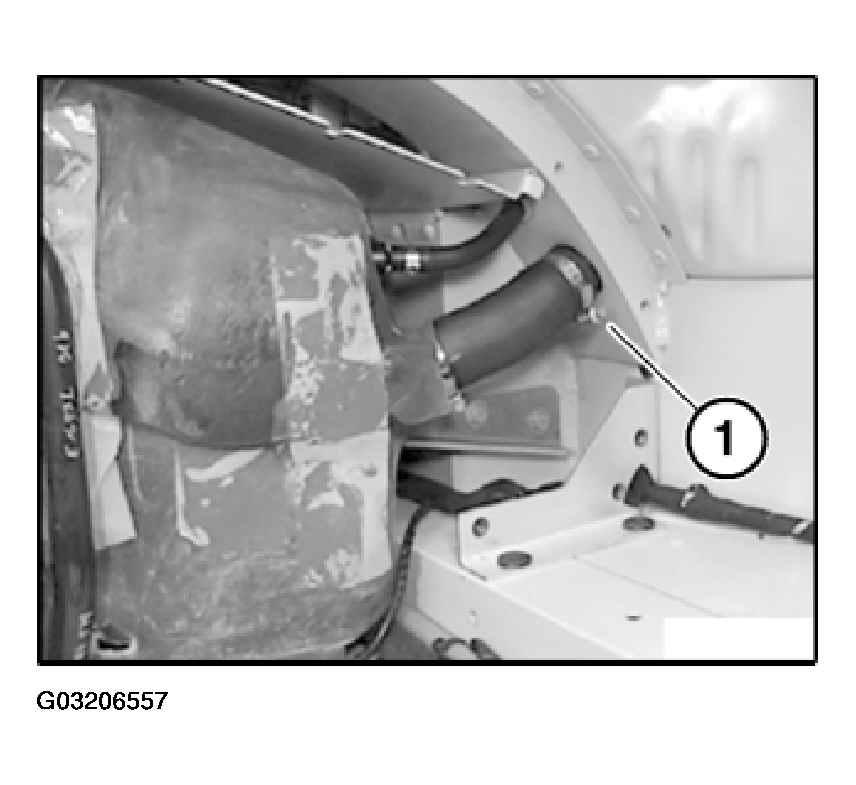

Carefully press cover pot with rubber sleeve over fuel filler pipe (1).

Guide with other hand from below.

Fig 5: Identifying Fuel Filler Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: After installing fuel filler pipe, check electrical resistance between grounding lead (tank filler pipe) and wheel hub.
Measured value < 1000ohm

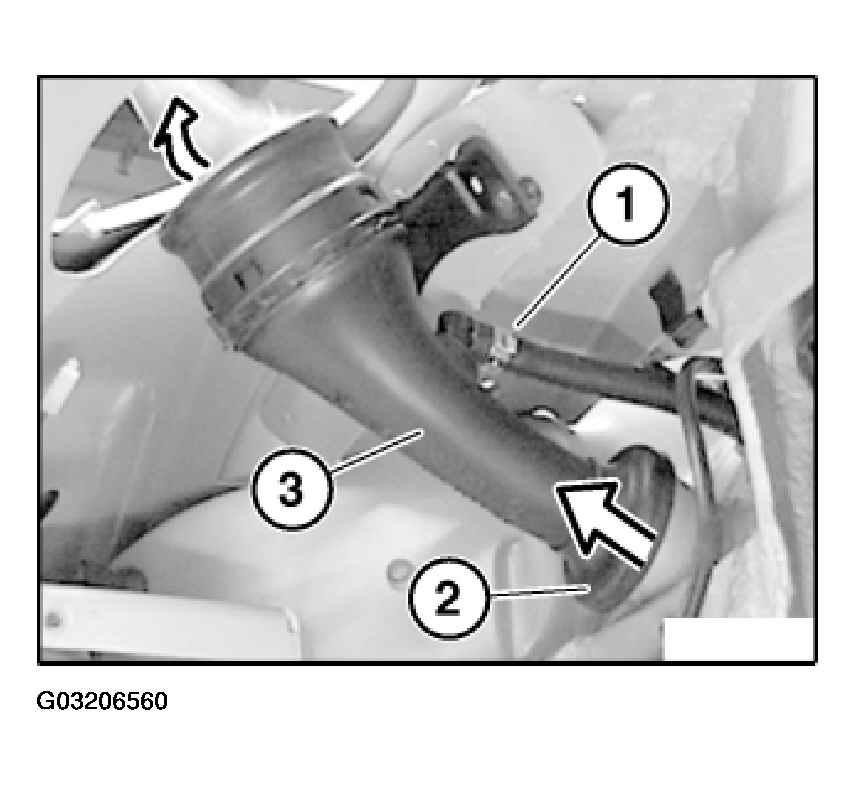

Release hose clamp (1) and detach vent hose from fuel filler pipe (3).

Fig 6: Detaching Vent Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace hose clamp (1).

Tightening torque 16 12 8AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

Detach rubber sleeve (2).

Remove fuel filler pipe (3) completely from wheel arch.
