16 11 ... Removing and installing/replacing partition wall, retaining bracket and wheel arch trim

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove panel for trunk separating wall. Refer to 51 47 140 REMOVING AND INSTALLING/REPLACING PANEL FOR TRUNK SEPARATING WALL .

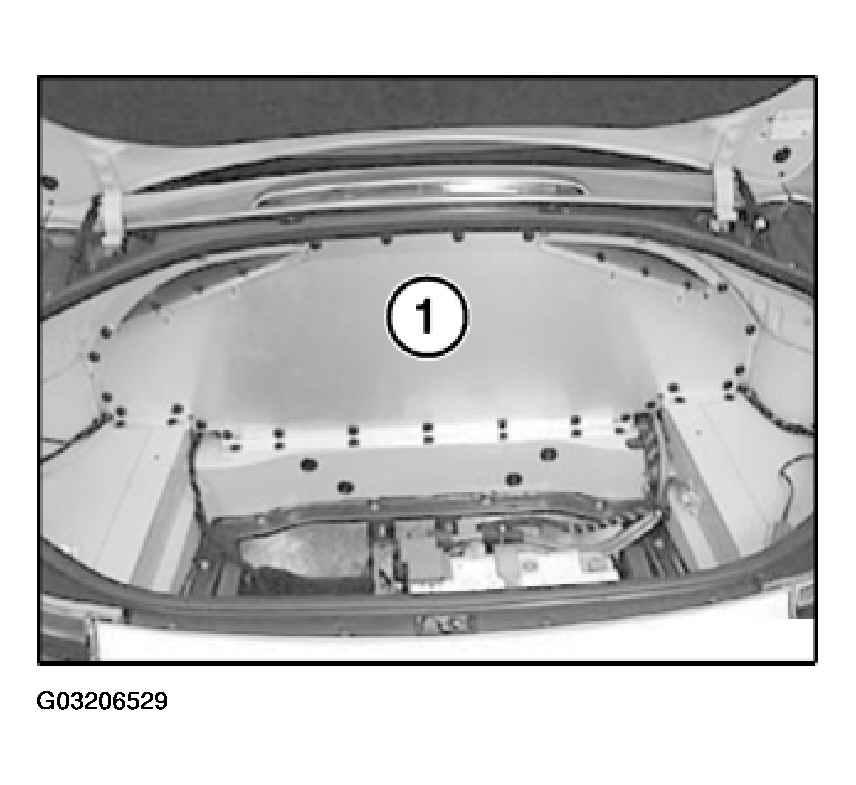

Release screws on partition wall (1) (23 x).

Fig 1: Releasing Screws On Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 16 11 5AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

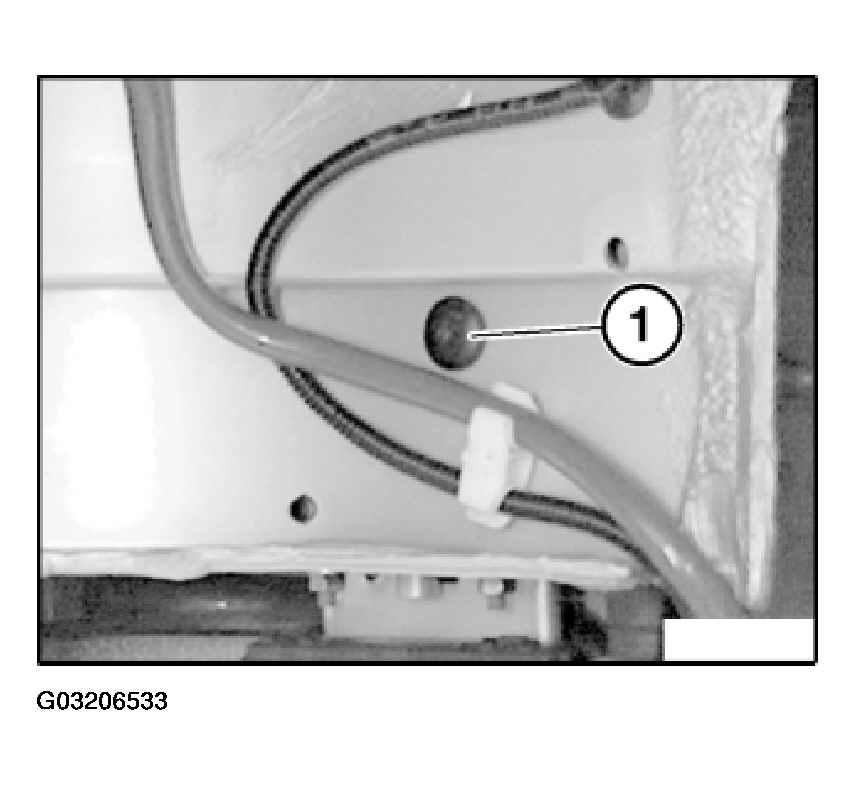

Release screws (1) on right and left (6 x).

Fig 2: Releasing Screws On Right And Left

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 16 11 5AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

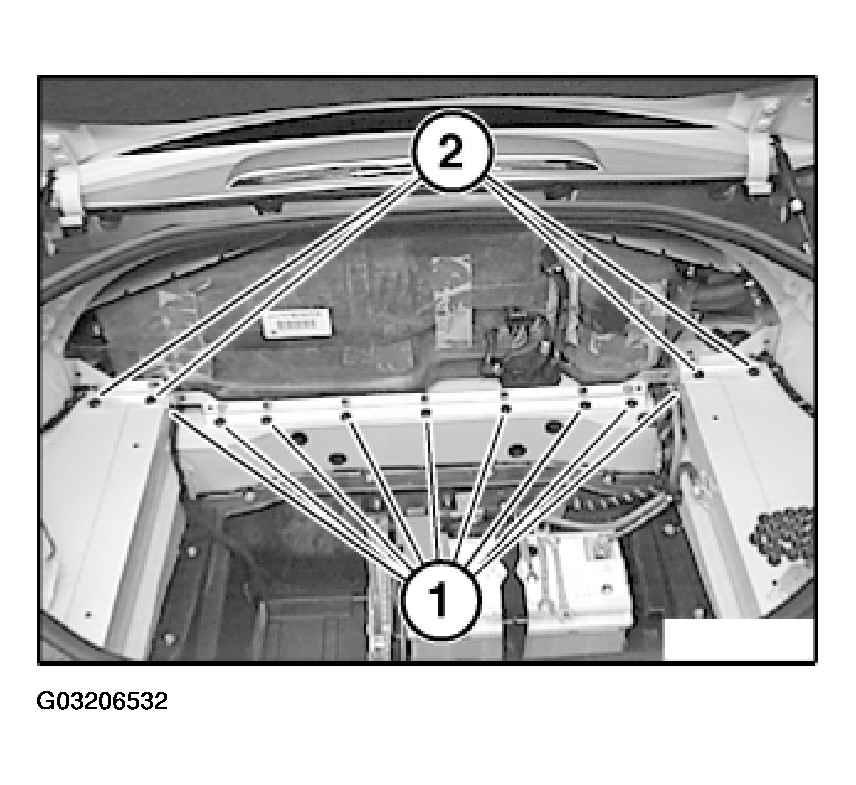

Detach and remove partition wall.

Fig 3: Removing Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.

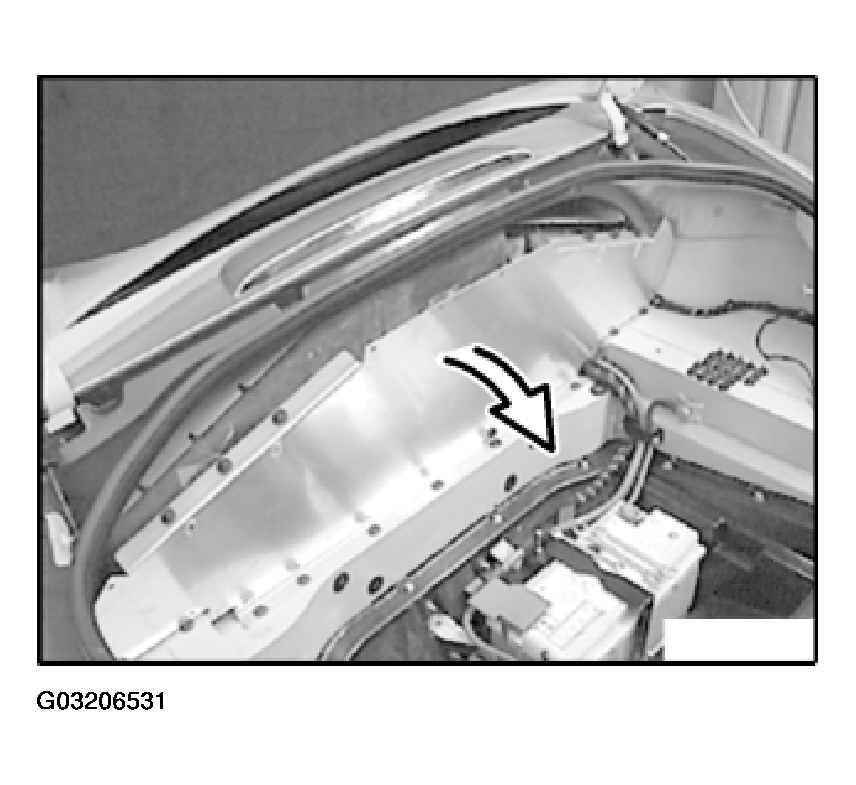

Remove screws (1) and (2).

Fig 4: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 16 11 5AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

Remove wheel arch trim.

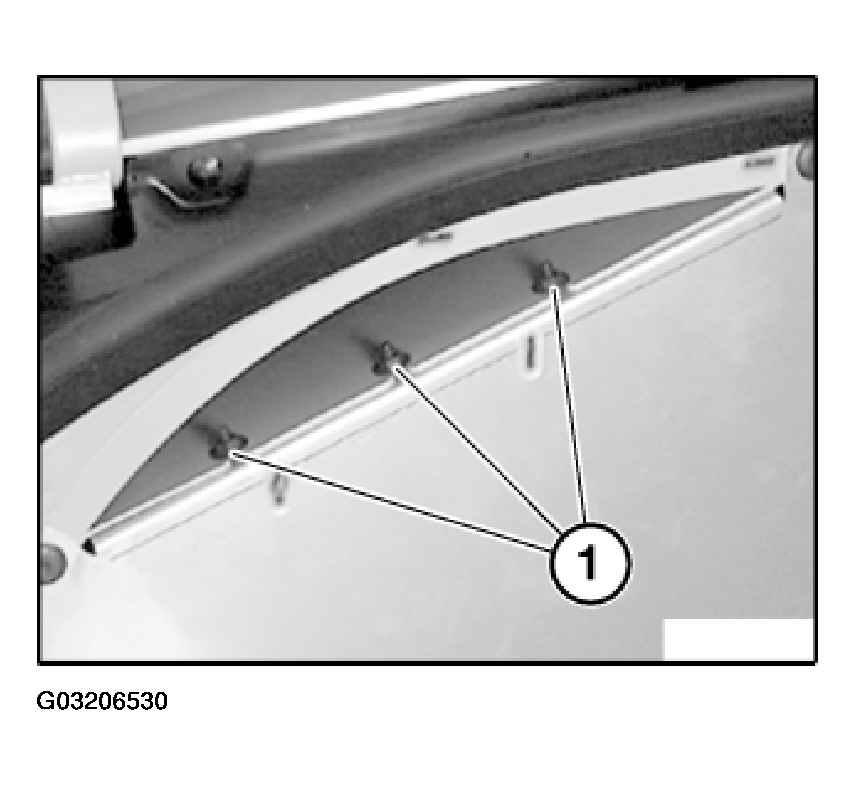

Release screws (1) on right and left in wheel arch.

Fig 5: Releasing Screws On Right And Left In Wheel Arch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 16 11 6AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .
