16 14 010 Removing and installing/replacing fuel pump

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Draw off fuel from fuel tank. Refer to 16 00 005 Draining and filling fuel tank .

Remove fuel level sensor for fuel gauge. Refer to 16 12 001 Removing and installing/replacing fuel level sensor for fuel gauge .

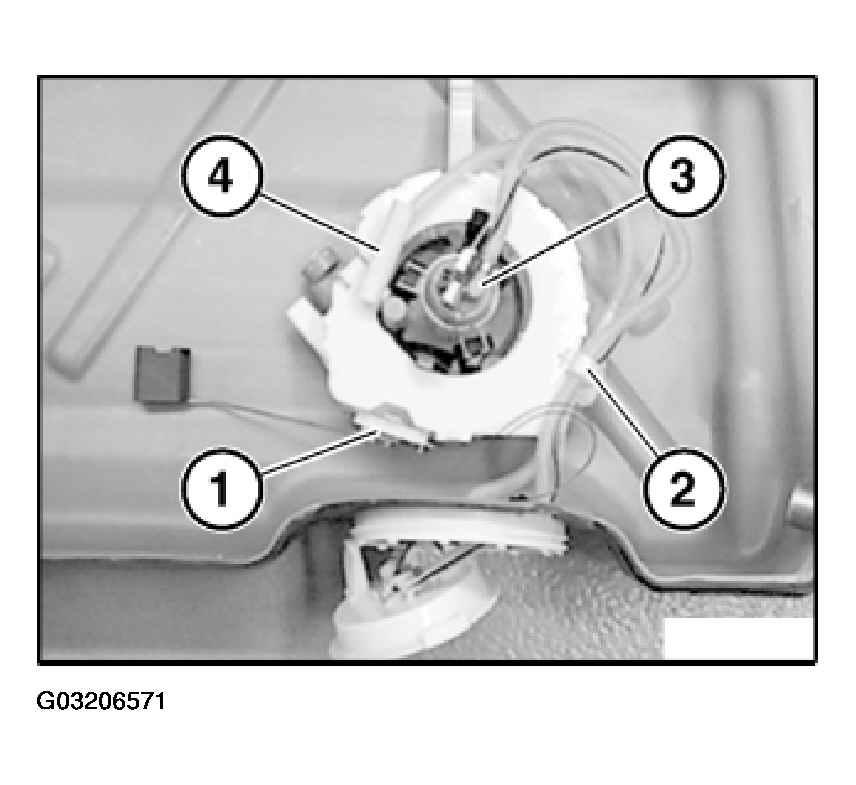

Fuel tank structure:

Fuel level sensor (1) for fuel gauge

Discharge protection valve (2) with holder

Fuel pump (3) with fixture

Holder for connection (4) with corrugated pipe

Fig 1: Identifying Fuel Tank Structure

Courtesy of BMW OF NORTH AMERICA, INC.

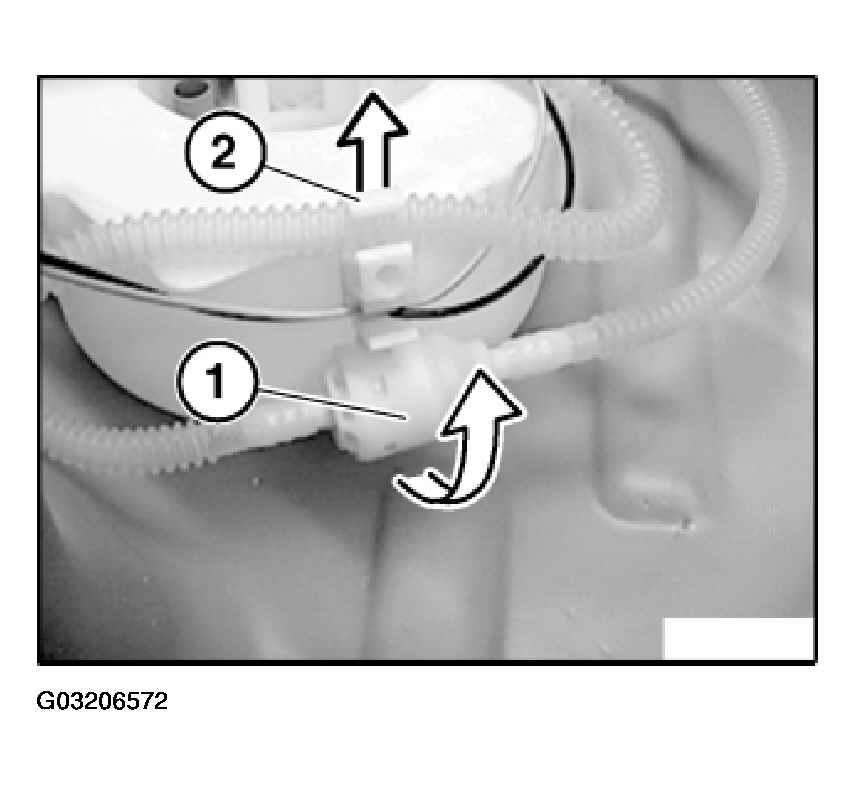

Pull discharge protection valve (1) with holder in lower area forwards and slide upwards (2).

Fig 2: Pulling Discharge Protection Valve

Courtesy of BMW OF NORTH AMERICA, INC.

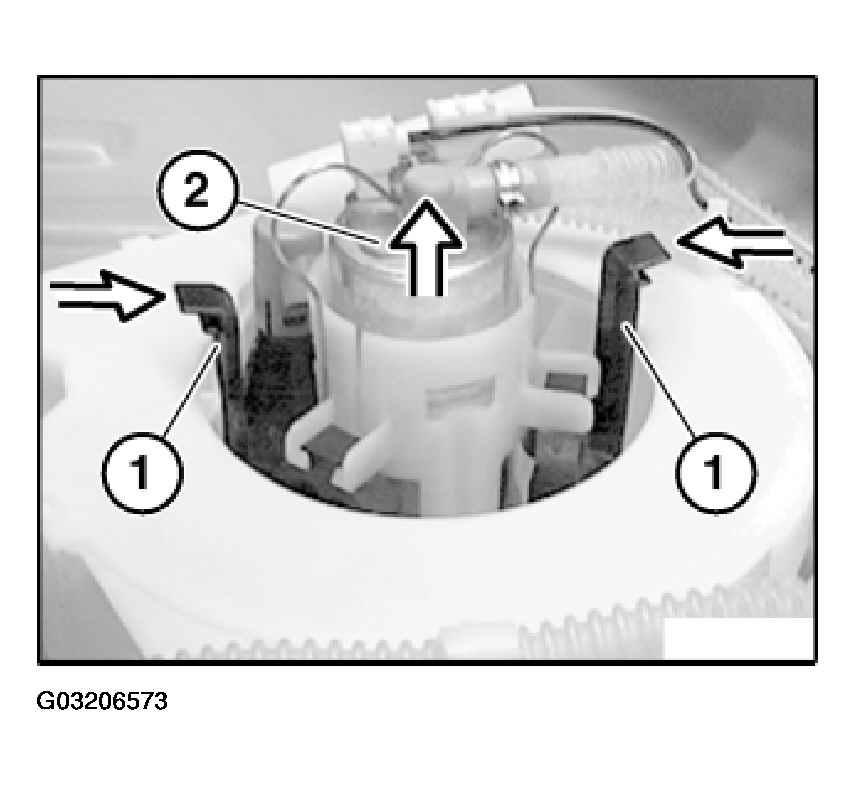

Press together holder for fuel pump (1) and slide fuel pump (2) upwards.

Fig 3: Identifying Holder For Fuel Pump And Fuel Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check locking by pulling upwards on pump unit.

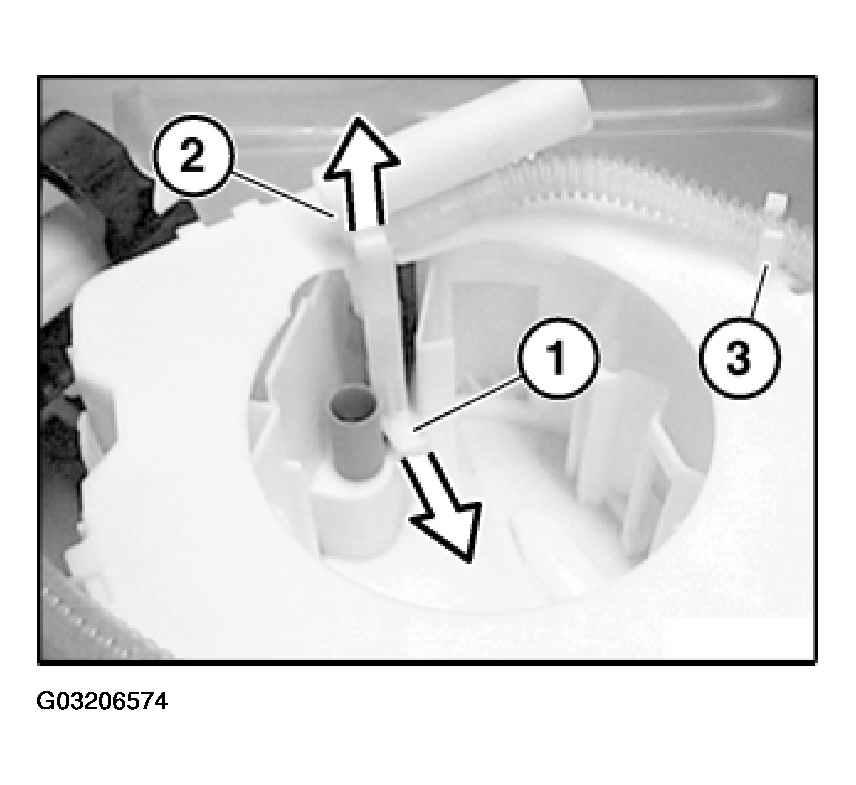

Pull fixture (1) forwards and slide (2) upwards.

Press corrugated pipe out of fixture (3).

Fig 4: Pressing Corrugated Pipe Out Of Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

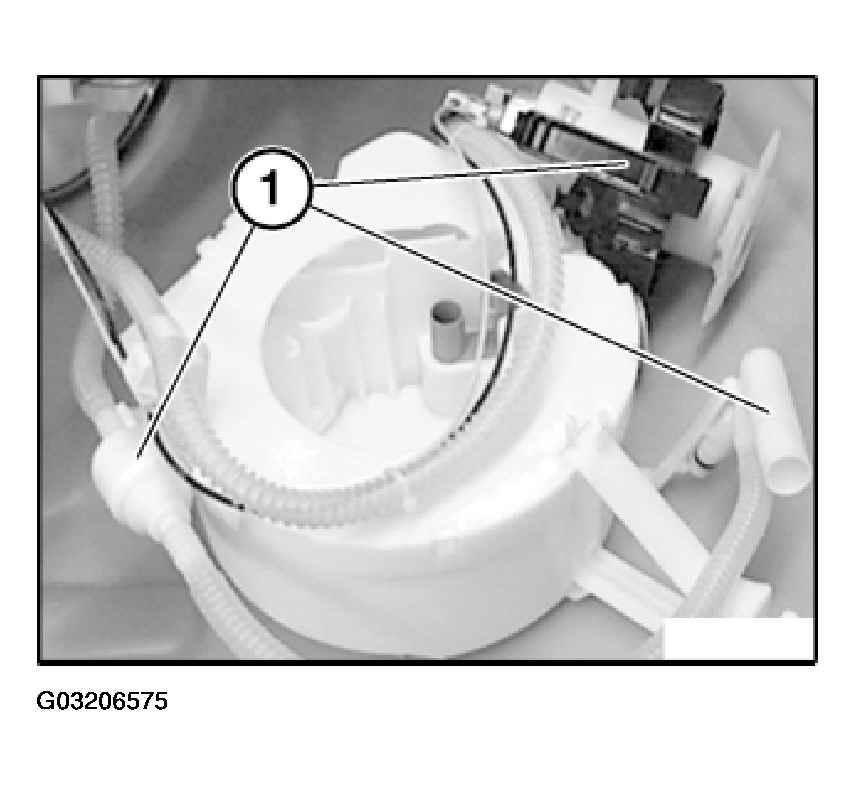

CAUTION: Carefully remove pump unit (1).

Fig 5: Removing Pump Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure unit is not twisted during installation.
