52 25... Replacing armrest lower section for rear seat backrest

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove ARMREST for rear seat backrest

Release retaining ring (1) on left and right.

Release screws on left and right.

Installation:

Armrest upper section is coded against incorrect installation with plastic pins (2).

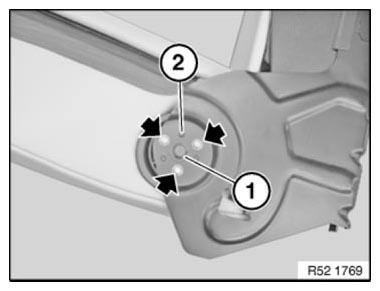

Fig 1: Identifying Retaining Ring And Plastic Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove COVER ON ARMREST
Remove CAP ON ARMREST
Remove DECORATIVE TRIM
Remove CAMOUFLAGE ON ARMREST
