52 25... Removing and installing/replacing lid on rear armrest

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Open cover (1).

Unclip lid (1) in marked area with plastic wedge.

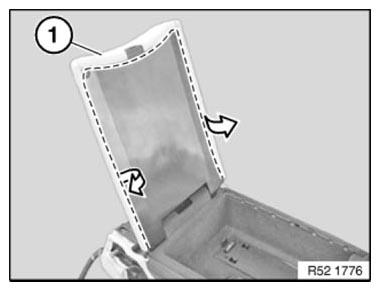

Fig 1: Removing Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Drive out split pin on left and right.

Remove carrier for lid.

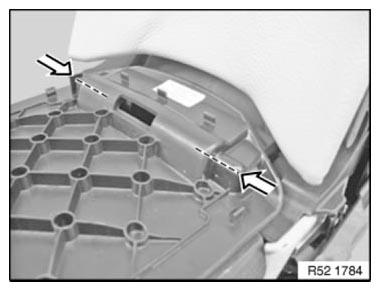

Fig 2: Driving Out Split Pin On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.
