52 25 030 Removing and installing complete armrest for rear seat backrest

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Sliding blocks (1) are spring-mounted.

Press sliding blocks (1) on left and right inwards and tilt cover forwards.

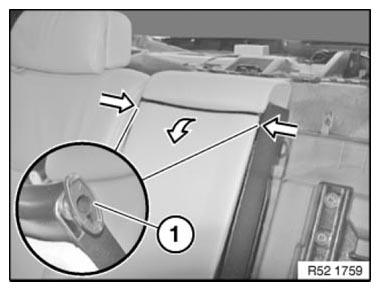

Fig 1: Pressing Sliding Blocks On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 52 25 1AZ .

Lever out armrest towards front.

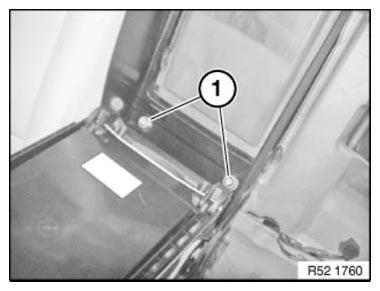

Fig 2: Identifying Rear Seat Backrest Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Installation:

Plug connections (1) are coded against incorrect installation.

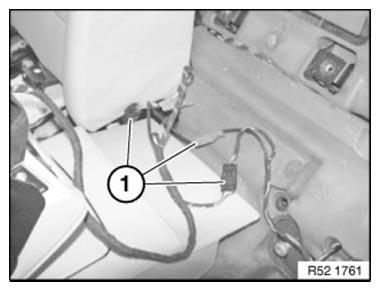

Fig 3: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
