51 35 001 Removing and installing/replacing gearbox for the roller sun blind of left or right rear door

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Retract the roller sunblind
Remove DOOR TRIM PANEL
Remove the WEATHER STRIP ON THE INSIDE of the triangle window

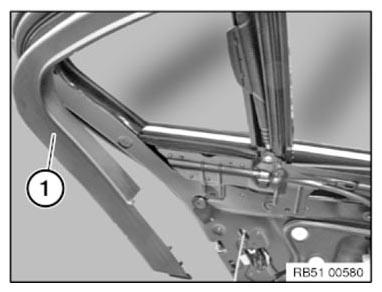

Partially loosen the cover for the window frame (1).

Fig 1: Identifying Window Frame

G06885779

Courtesy of BMW OF NORTH AMERICA, INC.

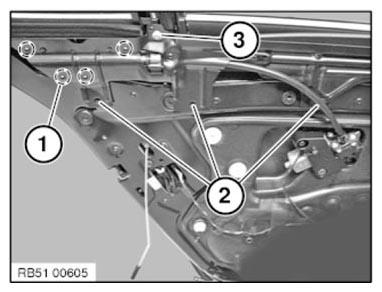

Unfasten screws (1) to (3).

Tightening torque 51 16 18AZ .

Fig 2: Identifying Window Frame Screws

G06885780

Courtesy of BMW OF NORTH AMERICA, INC.

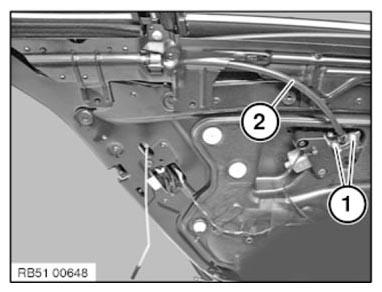

Release screws (1).

Pull the Flex shaft (2) out.

Fig 3: Identifying Flex Shaft And Screws

G06885781

Courtesy of BMW OF NORTH AMERICA, INC.

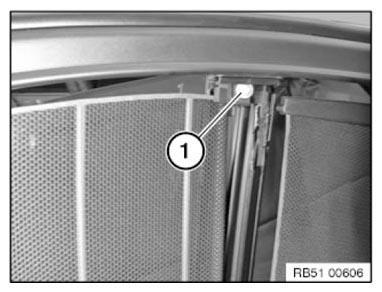

Slacken bolt (1).

Fig 4: Identifying Door Bolt

G06885782

Courtesy of BMW OF NORTH AMERICA, INC.

Swivel the gearbox (1) to the side.

Fig 5: Removing Gearbox

G06885783

Courtesy of BMW OF NORTH AMERICA, INC.

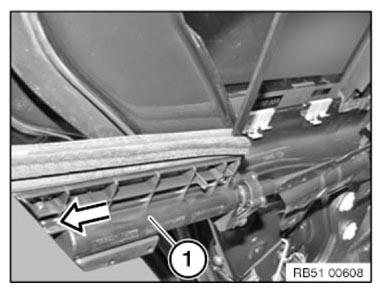

Pull the gearbox (1) off in direction of arrow.

Fig 6: Pulling Gearbox

G06885784

Courtesy of BMW OF NORTH AMERICA, INC.

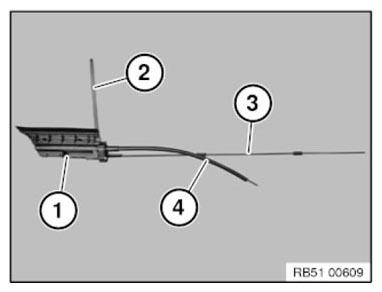

Installation note:

Pivot arm (2) must be vertical.

Feed in gearbox (1) with pivot arm (2), radial shaft axle (3) and Flex shaft (4).

Radial shaft axle (3) must be seated correctly in the gearing.

Fig 7: Identifying Pivot Arm, Gearbox, Radial Shaft Axle And Flex Shaft

G06885785

Courtesy of BMW OF NORTH AMERICA, INC.
