51 16 172 Removing and installing/replacing center armrest storage compartment
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

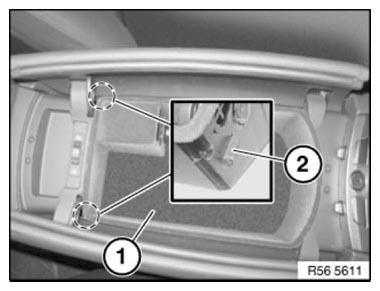

Unlock center armrest storage compartment (1) with a suitable tool at points (2) and raise slightly.
Unlock and disconnect plug connections behind.
Remove center armrest storage compartment (1).
Replacement:
- Remove LED FOR CENTER ARMREST STORAGE COMPARTMENT
- Remove USB/AUDIO INTERFACE CONNECTING SOCKET
- Remove EJECT BOX
