61 31 134 Removing and installing/replacing USB audio interface connecting socket

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove CENTER ARMREST STORAGE COMPARTMENT

Disconnect plug connection (1).

Installation note:

Retaining lug (3) must not be damaged.
Make sure connecting socket (2) is correctly seated in storage compartment (4).

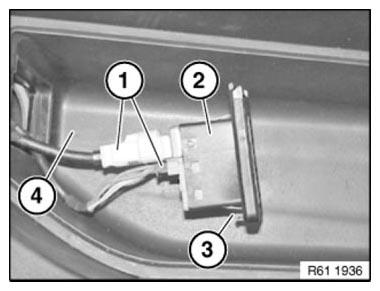

Fig 1: Identifying Center Armrest Storage Compartment With Plug Connection, Socket And Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.
