84 10 705 Removing and installing/replacing base plate
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
NOTE:

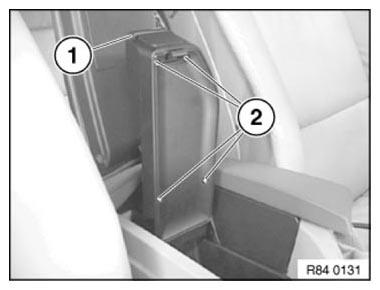

Unlock base plate (1) and fold upwards.
Unfasten screws (2).
Feed out base plate (1) and remove.
Installation:
Ensure correct cable routing in base plate (1).
