51 16... Removing and installing/replacing side trim panels on center console on left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

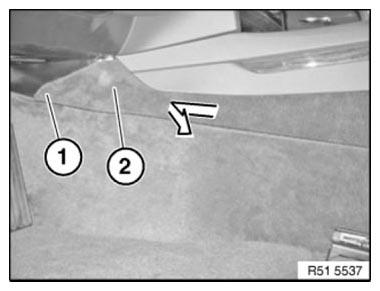

Release screw (1).

Slide trim panel (2) in direction of arrow and remove.

Fig 1: Sliding Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

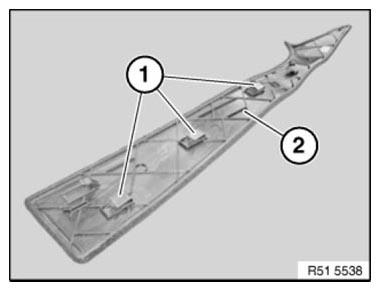

Retainers (1) must be correctly seated in panel guides (2).

Fig 2: Identifying Retainers And Panel Guides

Courtesy of BMW OF NORTH AMERICA, INC.

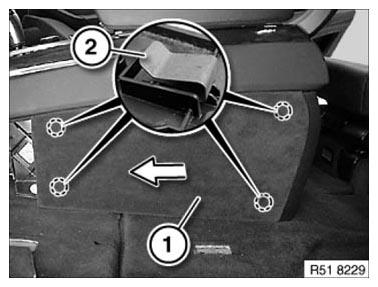

Feed side carpet (1) towards front out of center console.

Installation note:

Replace faulty retainers (2).

Fig 3: Feeding Side Carpet Front Out Of Center Console

Courtesy of BMW OF NORTH AMERICA, INC.
