51 16 229 Removing and installing/replacing lower rear center console trim

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove CENTER CONSOLE TRIM

Unclip lower rear center console (1) first and top then at bottom from center console trim (2).

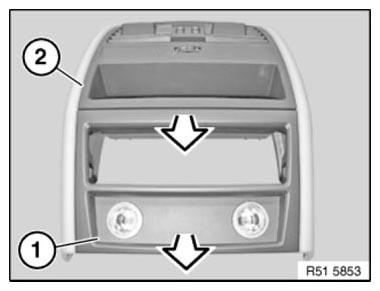

Fig 1: Removing Lower Rear Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Correctly clip lower rear center console (1) at all four points into center console trim (2).

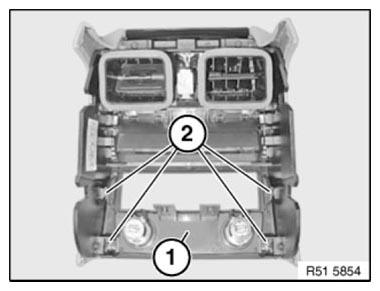

Fig 2: Identifying Lower Rear Center Console And Center Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.
