84 31 020 Removing and installing/replacing hands-free system speaker (emergency loudspeaker)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRIM PANEL FOR PEDAL MECHANISM .

Disconnect connector (1).

If necessary, loosen cable straps from latch mechanisms (2).

Unlock latch mechanisms (2).

Remove speaker (3) from bracket.

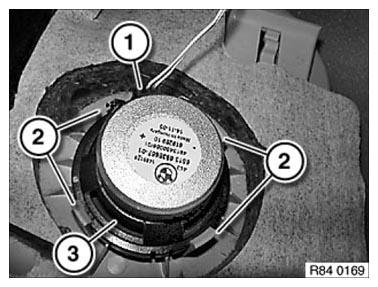

Fig 1: Identifying Speaker, Latch Mechanisms With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (2) must not be damaged.

Guide lugs of the bracket must be positioned in the corresponding grooves of the speaker (3).

Speaker (3) must audibly engage in the bracket.
