51 45 184 Removing and installing/replacing trim panel for pedal assembly (ECE only)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

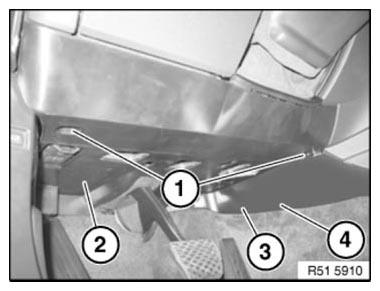

Release screws (1).
Release screw (3).
Fold back console trim (4).
Lower panel (2) slightly and disconnect plug connections behind.
Remove trim (2).
Replacement:
- Remove FOOTWELL LIGHT
- Remove SPEAKER FOR HANDS-FREE SYSTEM
