51 22 360 Replacing seal for door gap/roof frame on left or right rear door

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out seal (2) on door window frame at front (1) with special tool 00 9 317 .

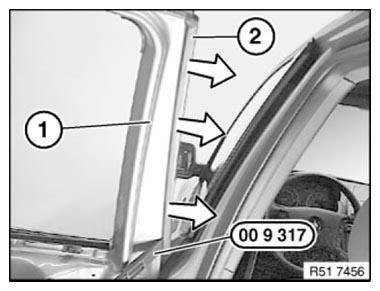

Fig 1: Removing Seal On Front Door Window Frame With Special Tool (00 9 317)

G06885591

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off seal (1) beginning at the front toward the rear.

Installation note:

Thread in seal (1) in window frame first on the inside and then on the outside.

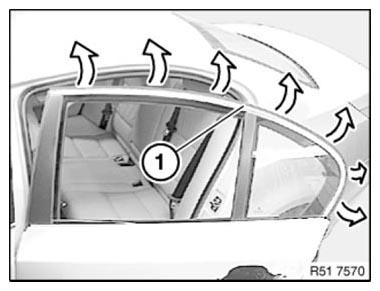

Fig 2: Pulling Off Seal

G06885592

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Vehicle type Touring only:

Feed in the plastic lug (2) of the seal (1) correctly at the top rear window frame corner.

Fig 3: Identifying Plastic Lug And Seal

G06885593

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip seal (2) from inside door leaf (1) at bore holes.

Fig 4: Unclipping Seal From Inside Door Leaf

G06885594

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Moisten seal with water for easier mounting.
