51 22 300 Removing and installing/replacing window cavity cover strip on rear door on left or right
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
To remove weather strip, observe PROCEDURE
for using special tool 00 9 324
.
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.
IMPORTANT:
If reusing the existing window cavity cover strip (1), make sure it is not bent.
Tape off area below window cavity cover strip with fabric adhesive tape (2).
Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).
Installation note:

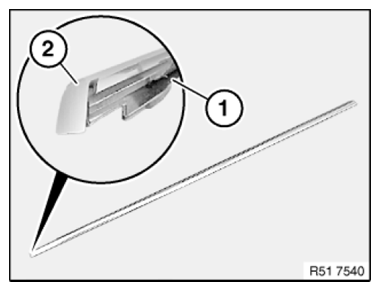

Seal (1) must be correctly fitted in cover strip (2).
Moisten seal (1) prior to fitting with approved lubricant, see 3. AUXILIARY MATERIALS AND TOOLS .
