51 47 315 Removing and installing/replacing front carpet for passenger compartment

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove HEATING AND AIR-CONDITIONING UNIT .
Remove both front seats. See REMOVING DRIVER'S SEAT and REMOVING PASSENGER SEAT .
Remove COMPLETE ACCELERATOR PEDAL MODULE

Remove front floor trim panel (1) towards rear/top and if necessary feed out cable.

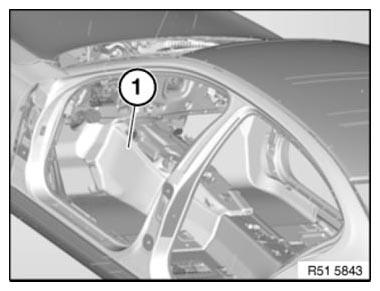

Fig 1: Identifying Front Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Apertures (1) serve as fixing points when fitting the front floor trim panel (2).

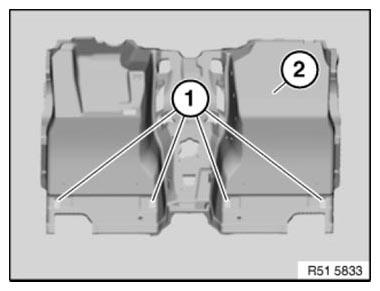

Fig 2: Identifying Apertures And Front Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
