35 40 001 Removing and installing or replacing accelerator pedal module

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Take off cap.

Release screw.

Pull accelerator pedal module upwards out of fixture.

Installation note:

Tightening torque 35 40 1AZ .

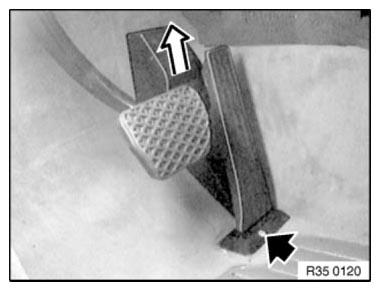

Fig 1: Pulling Accelerator Pedal Module

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connector (1).

Remove accelerator pedal module.

Fig 2: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Accelerator pedal module can only be replaced completely with adapter plate.
