52 14 002 Removing and installing front seat, passenger side

Necessary preliminary work:

• Remove front CRASH-ACTIVE HEADREST
• Remove COVERS ON SEAT RAILS

Installation:

• Powerlok screws must be replaced and must not  be reused
• Powerlok screws are mechanical screw locks with tri-lobular threads

Move front seat towards rear.

Release screws (1).

Installation:

Replace screws.

Tightening torque 52 10 1AZ .

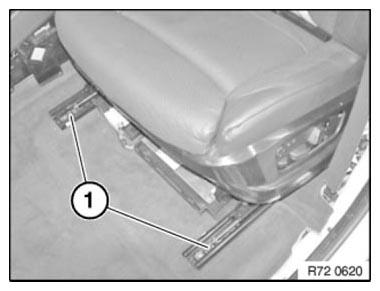

Fig 1: Identifying Front Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Move front seat forwards.

Release screws.

Installation:

Replace screws.

Tightening torques 52 10 1AZ .

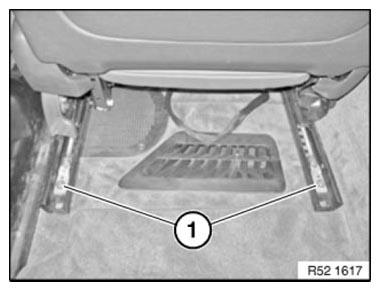

Fig 2: Identifying Front Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Move front seat upwards.

Release screw (1) on front seat.

Installation:

Replace screw.

Tightening torque 72 11 2AZ .

Feed out belt anchor fitting (2).

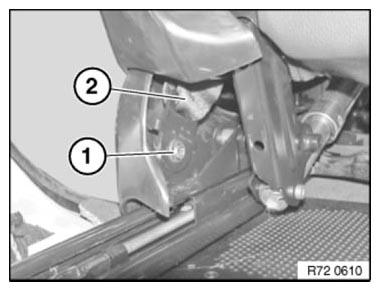

Fig 3: Identifying Front Seat Screw And Belt Anchor Fitting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carpet must not project between seat rail and floor board in area of screw-down points (grinding noises).

Unclip cover (1) towards front.

Release cable tie on plug connection.

Installation:

Replace defective cable tie.

Unfasten plug connection (2) and disconnect.

Unclip wiring harness from seat mechanism.

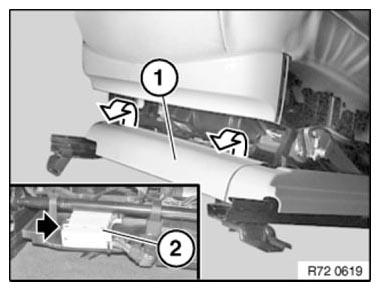

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lift out front seat.

Installation:

Make sure wiring harness is correctly routed in order to avoid grating noises, jamming or collisions.

Clip in cable holder for wiring harness.

Lay wiring harness only in area (1) of cover.

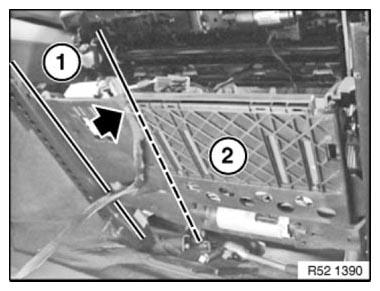

Fig 5: Identifying Wiring Harness Installing Area

Courtesy of BMW OF NORTH AMERICA, INC.

Fitting the wiring harness between the carpet and the cover in control unit area (2) will result in grating noises.

Carry out a complete longitudinal adjustment (forward/back) with front seat.
