64 53 761 Pressure line from connecting piece to rear heater - A/C system (F02 only): Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of injury!

Refrigerant circuit is under high pressure!

Read and comply with SAFETY INFORMATION .

Avoid contact with refrigerant and refrigerant oil.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle

Risk of damage!

Restart engine only when A/C system has been correctly filled.

Follow notes for OPENING AND REPLACING PARTS IN REFRIGERANT CIRCUIT .

If A/C system is opened for more than 24 hours:

Replace desiccant insert for A/C system. See REPLACING DESICCANT INSERT or REPLACING DESICCANT INSERT (CAPACITOR REMOVED) .

To ensure that the refrigerant is almost completely drained from the rear air conditioner:

In the diagnosis system under Service functions carry out the instruction for "Draining/filling refrigerant circuit".

Necessary preliminary tasks:

DRAW OFF/EVACUATE the air conditioning system
Remove ENTIRE EXHAUST SYSTEM
Remove heat shield at rear.
Remove UNDERBODY PANELLING

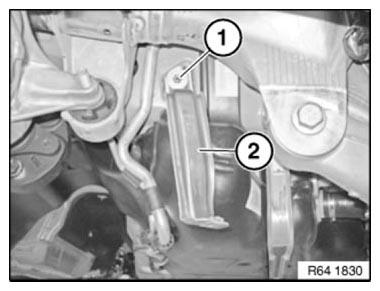

Slacken nut (1).

Take off holder (2).

Fig 1: Identifying Slacken Nut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Secure rear axle support against falling out.

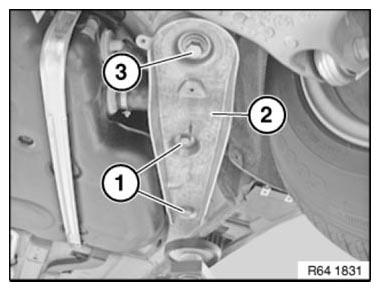

Slacken screws (1) on right compression strut (2), do not unscrew fully.

Tightening torque 33 33 2AZ .

Slacken screw (3) (do not unscrew fully).

Tightening torque 33 33 1AZ .

Fig 2: Identifying Right Compression Strut And Slacken Screws

Courtesy of BMW OF NORTH AMERICA, INC.

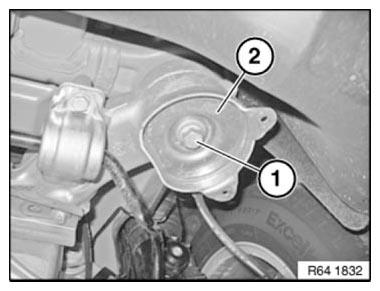

Slacken screws (1) on rear axle support at rear right (2), do not unscrew fully.

Tightening torque 33 33 1AZ .

Gently lower rear axle at rear right to make it easier to feed out refrigerant lines later.

Fig 3: Identifying Rear Axle Support And Slacken Screws

Courtesy of BMW OF NORTH AMERICA, INC.

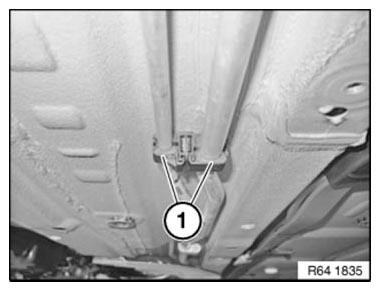

Unlock and open respective clamp (1).

Fig 4: Identifying Respective Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

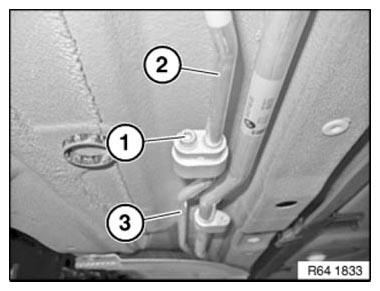

Release screw (1).

Disconnect pressure line (2) from pressure line (3).

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.

Fig 5: Identifying Pressure Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

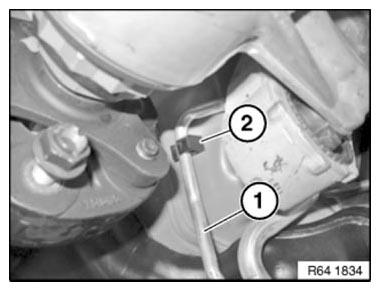

Unclip pressure line (1) from holder (2).

Fig 6: Identifying Pressure Line And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

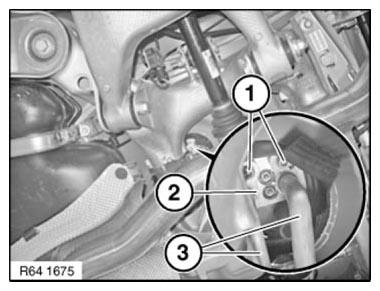

Release corresponding screw (1).

Tightening torque 64 53 5AZ .

Carefully detach respective refrigerant line (3) downwards from expansion valve (2).

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.

Fig 7: Identifying Respective Refrigerant Line And Expansion Valve

Courtesy of BMW OF NORTH AMERICA, INC.

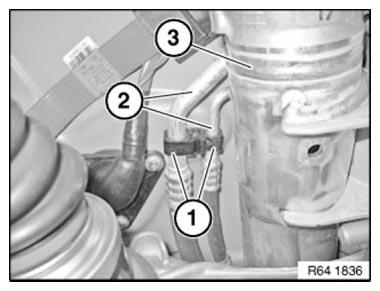

Unlock and open respective clamp (1).

Feed out corresponding refrigerant line (2) between vehicle underbody and rear axle support (3).

Fig 8: Identifying Corresponding Refrigerant Line And Rear Axle Support

Courtesy of BMW OF NORTH AMERICA, INC.
