64 53 518 Replacing desiccant insert for A/C system (capacitor removed)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

Restart engine only when A/C system has been correctly filled.

Follow notes for OPENING AND REPLACING PARTS IN REFRIGERANT CIRCUIT .

If air conditioning system is opened for more than 24 hours:

replace desiccant insert for air conditioning system

Follow INSTRUCTIONS ON REPLACING DESICCANT INSERT .

Remove protective cap (1) from capacitor for the heating and air conditioning system (2).

Fig 1: Identifying Air Conditioning System And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Press sealing cap (1) inwards and remove circlip (2).

Fig 2: Pressing Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

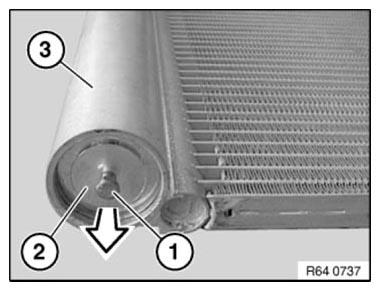

Remove the sealing cap (2) from capacitor of the heating and air conditioning system (3) with an inserted screw (1).

Fig 3: Removing Air Conditioning System From Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.

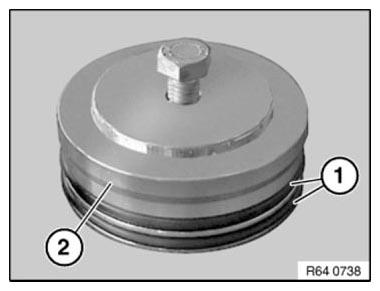

Fig 4: Identifying Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Risk of damage!

Removal is made more difficult if bridge (2) is damaged!

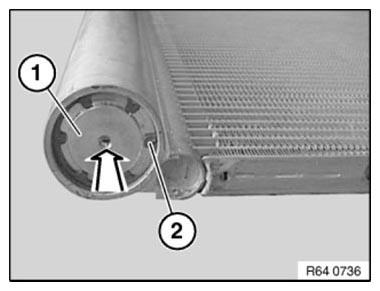

Remove desiccant insert for heating and air conditioning system (1) in direction of arrow from capacitor of the heating and air conditioning system (2).

Fig 5: Pulling Out Desiccant Insert With Wide Pliers On Bridge

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Add final details to vehicle

EVACUATE AND FILL AIR CONDITIONING SYSTEM
