64 53 517 Replacing desiccant insert for air conditioning system

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!

Refrigerant circuit is under high pressure!

Avoid contact with refrigerant and refrigerant fluid.

Read and comply with SAFETY INFORMATION .

IMPORTANT: Risk of damage!

Restart engine only when air conditioning system has been correctly filled.

Follow notes for OPENING AND REPLACING PARTS IN REFRIGERANT CIRCUIT .

If air conditioning system is opened for more than 24 hours: replace desiccant insert for air conditioning system

Follow INSTRUCTIONS ON REPLACING DESICCANT INSERT .

Necessary preliminary work:

Drain off AIR CONDITIONING SYSTEM
Remove UNDERBODY PROTECTION .

NOTE: Pictured in removed state.

The condenser does not need to be removed for the following operations!

Remove protective cap (1) from capacitor (2).

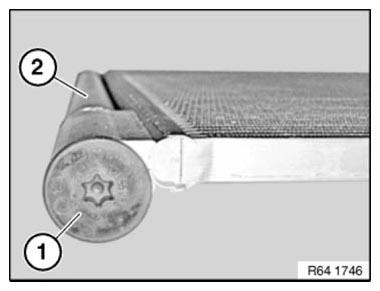

Fig 1: Identifying Protective Cap And Capacitor

G06886382

Courtesy of BMW OF NORTH AMERICA, INC.

Press sealing cap (1) inwards and remove circlip (2).

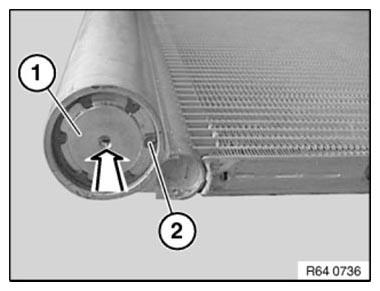

Fig 2: Pressing Sealing Cap

G06886383

Courtesy of BMW OF NORTH AMERICA, INC.

With assistance of a screwed-in screw (1), remove sealing cap from capacitor (3).

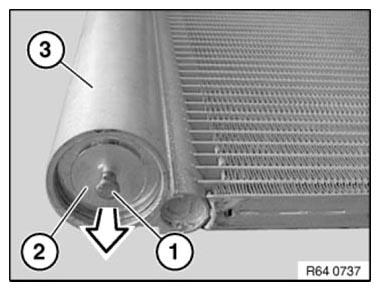

Fig 3: Removing Sealing Cap From Capacitor

G06886384

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.

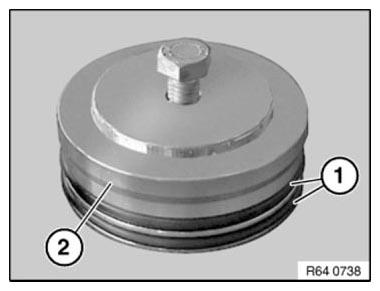

Fig 4: Identifying Sealing Rings

G06886385

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Risk of damage!

Removal is made more difficult if rib (2) is damaged!

Carefully pull out desiccant insert (1) with a pair of wide pliers on rib (2).

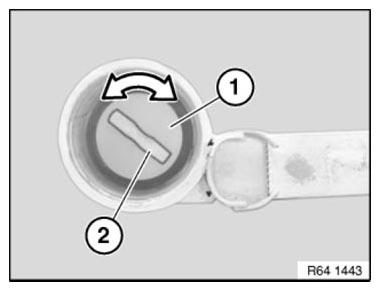

Fig 5: Pulling Out Desiccant Insert With Wide Pliers On Bridge

G06886386

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

EVACUATE AND FILL AIR CONDITIONING SYSTEM
