64 51 525 Removing and installing or replacing expansion valve: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!

Refrigerant circuit is under high pressure!

Avoid contact with refrigerant and refrigerant fluid.

Read and comply with SAFETY INFORMATION .

IMPORTANT: Risk of damage!

Restart engine only when air conditioning system has been correctly filled.

Follow notes for OPENING AND REPLACING PARTS IN REFRIGERANT CIRCUIT .

If air conditioning system is opened for more than 24 hours: Replacing DESICCANT INSERT for air conditioning system

Necessary preliminary work:

DRAW OFF/EVACUATE the heating and air conditioning system
Remove SOUND INSULATION FROM BULKHEAD UPPER SECTION

Feed out line penetration (1) towards top.

Fig 1: Identifying Line Penetration

Courtesy of BMW OF NORTH AMERICA, INC.

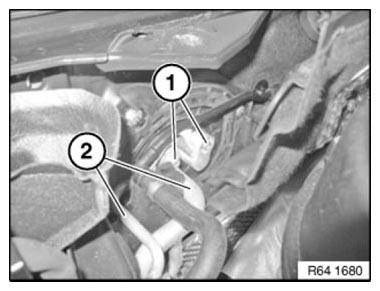

Release screws (1) and remove refrigerant lines (2) with associated seal.

Tightening torque 64 53 1AZ .

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to install sealing rings without damaging them.

Fig 2: Identifying Refrigerant Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

F02 Automatic rear air-conditioning system only:

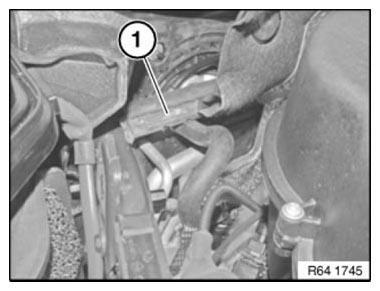

Release screw (1).

Tightening torque 64 53 7AZ .

Remove refrigerant line (2) with associated seal.

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to install sealing rings without damaging them.

Fig 3: Identifying Refrigerant Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 64 53 9AZ .

Remove sealing plate (2) by maneuvering upwards.

Fig 4: Identifying Sealing Plate And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out foam material (1).

Unfasten screws (2).

Tightening torque 64 53 2AZ .

Carefully remove flange (3) with expansion valve behind.

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.

Flange (3) must be correctly seated on expansion valve.

Fig 5: Identifying Flange And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
