51 71... Removing and installing/replacing sound insulation for bulkhead upper section

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove COVER FOR WINDSCREEN COWL PANEL .

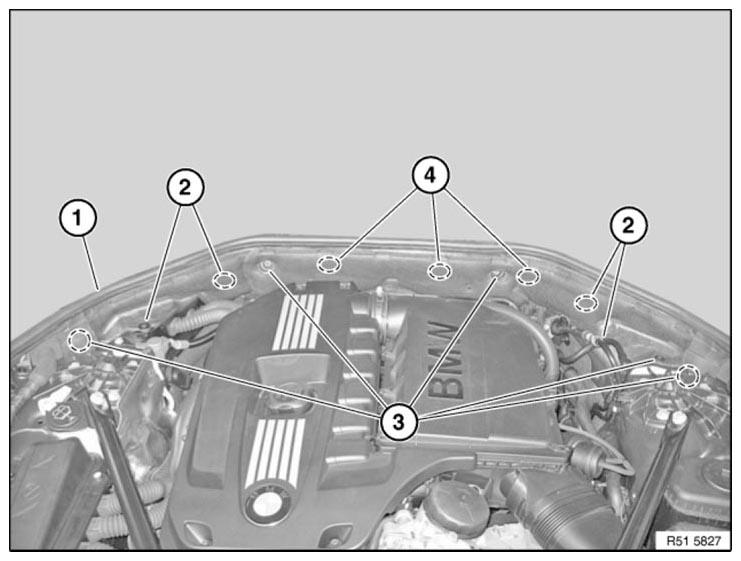

Fig 1: Identifying Rubber Seal And Screws

G06885949

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber seal (1).

Release screws (3).

Tightening torque 51 71 3AZ .

Unfasten screws (2).

NOTE: Screws (2) are partly behind side sound insulation.

Remove side sound insulation.

Release screws (4).

Tightening torque 51 71 3AZ .

NOTE: Screws (4) are behind central sound insulation.

(Refer to the following operation.)

Remove middle sound insulation.

NOTE: Arrows mark bolting points of middle sound insulation.

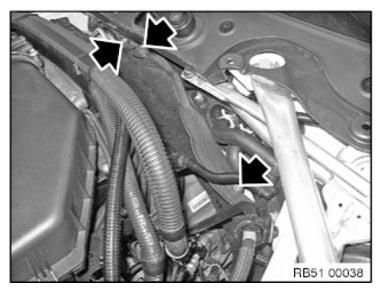

Fig 2: Locating Mark Bolting Points On Middle Sound Insulation

G06885950

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure line feed-through (1) is correctly seated.

Fig 3: Identifying Line Feed-Through

G06885951

Courtesy of BMW OF NORTH AMERICA, INC.
