24 31 564 Replacing torque converter shaft seal (GA8HP70Z) (N63)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale transmission oil vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT:

After completion of repair work, check TRANSMISSION OIL LEVEL .

Use only the approved TRANSMISSION OIL .

Failure to comply with this requirement will result in serious damage to the automatic transmission.

Necessary preliminary tasks:

Remove TORQUE CONVERTER .

Secure transmission with special tool 24 0 200 on assembly stand 00 2 300 .

NOTE: Read and comply with note on installation of TRANSMISSION RETAINING BRIDGE .

Fig 1: Pulling Out Radial Shaft Seal Using Special Tools (24 1 420 And 13 5 250)

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out radial shaft seal (1) with special tools 24 1 420 and 13 5 250 .

Fig 2: Driving Radial Shaft Seal Using Special Tool (24 2 410)

Courtesy of BMW OF NORTH AMERICA, INC.

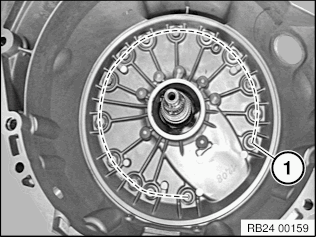

The 14 aluminium Torx screws contained in the drive repair kit are furnished with a sealing ring and must be replaced as well.

When replacing screws (1) along the dashed line, always change one screw after the other.

Tightening torque: 24 30 6AZ

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install the O-ring on the drive shaft.
Oil sealing lip on shaft seal.
Drive in radial shaft seal (1) with special tool 24 1 410 as far as it will go.

Fig 4: Identifying Parking Lock Lever And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
