24 31 011 Replacing torque converter shaft seal (GA6HP19Z) (N54)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove AUTOMATIC TRANSMISSION .

After completion of repair work, check TRANSMISSION OIL LEVEL .

Use only the approved TRANSMISSION OIL .

Failure to comply with this requirement will result in serious damage to the automatic transmission.

Secure transmission with special tool 24 0 200 on assembly stand 00 2 300 .

Remove TORQUE CONVERTER .

NOTE: Read and comply with installation notes for TRANSMISSION RETAINING BRIDGE .

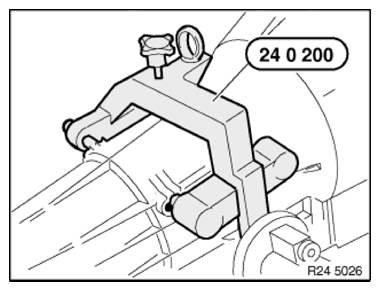

Fig 1: Identifying Special Tool

G09859714

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 24 2 353 to input shaft (1).

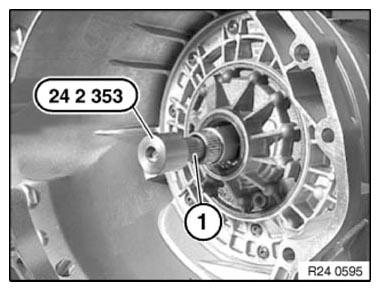

Fig 2: Attaching Special Tool (24 2 353) To Input Shaft

G09859715

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 24 2 351 until it is firmly connected with radial shaft seal.

Screw in special tool 24 2 352 to remove radial shaft seal.

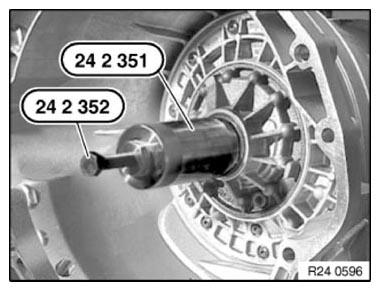

Fig 3: Removing Radial Shaft Seal

G09859716

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on shaft seal.

Drive in radial shaft seal (1) with special tool 24 2 400 as far as it will go.

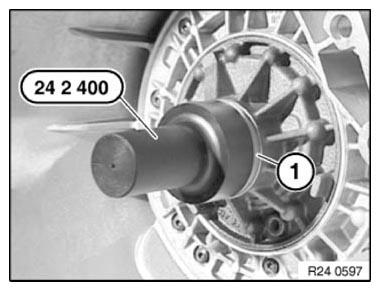

Fig 4: Installing Radial Shaft Seal

G09859717

Courtesy of BMW OF NORTH AMERICA, INC.
