34 21 745 Removing and installing/replacing left or right rear brake caliper

Necessary preliminary tasks:

• Remove WHEEL
• Read and comply with GENERAL INFORMATION  .

After completing repair work: BLEED BRAKE SYSTEM .

Press clutch pedal down to floor and secure with pedal support.

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Pressing Clutch Pedal Down

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect brake hose from brake line (1).

Installation note:

Tightening torque 34 32 1AZ .

Fig 2: Identifying Brake Hose And Brake Line

Courtesy of BMW OF NORTH AMERICA, INC.

Detach brake hose (1) from brake caliper.

Installation note:

Tightening torque 34 32 3AZ .

Fig 3: Identifying Brake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove BRAKE PAD WEAR SENSOR  .

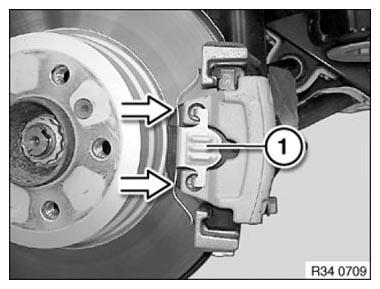

Lift out retaining spring (1).

Fig 4: Identifying Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

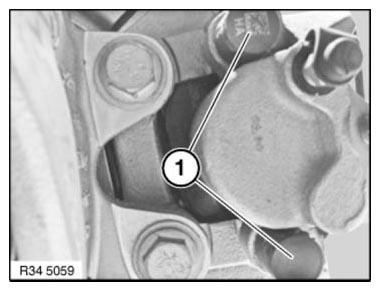

Remove cover plug (1).

Fig 5: Identifying Cover Plug

Courtesy of BMW OF NORTH AMERICA, INC.

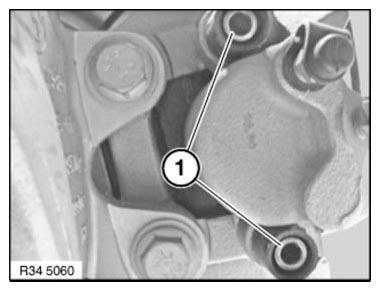

Unscrew guide bolts (1).

Withdraw brake caliper backwards.

Installation note:

Tightening torque 34 21 4AZ .

Clean guide screws only; do not grease.

Check threads.

Replace all guide screws which are not in perfect condition.

Fig 6: Identifying Guide Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

In the event of one-sided brake pad wear, do not change brake pads round.

Remove brake pads in direction of arrow.

If necessary, clean BRAKE CALIPER AND PADS .

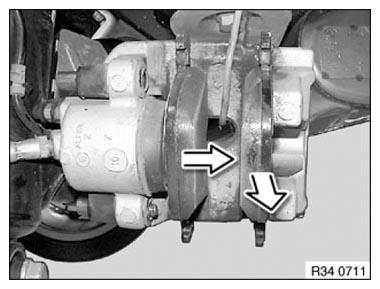

Fig 7: Removing Brake Pads

Courtesy of BMW OF NORTH AMERICA, INC.
