34 21 169 Removing and installing/replacing a brake anchor plate/brake guard plate at rear
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove PARKING BRAKE SHOES
NOTE:
Picture shows wheel hub removed. Wheel hub does not have to be removed.

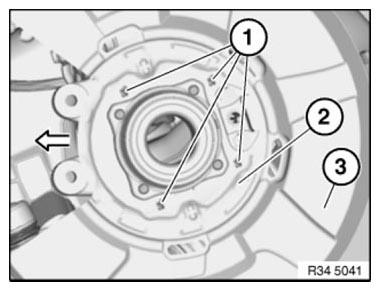

Release screws (1).
Installation note:
Replace screws.
Tightening torque 34 21 3AZ .
Remove retaining plate (2) in direction of arrow.
Feed out brake guard plate (3) over wheel hub.
