34 41 220 Removing and installing/replacing all parking brake pads

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Installation note:

Remove REAR BRAKE DISC
Release electromechanical parking brake (EMF)

After completing repair work: ADJUST PARKING BRAKE .

NOTE: During replacement of the hand brake coverings, the following components must also be replaced:

Brake shoe expander
Adjusting screw
Spring set

Disconnect return springs (1) with brake spring pliers.

Installation note:

Return springs (1) must not be over-elongated.

Check return springs (1) and replace if necessary.

Return springs (1) must not be mixed up.

Pay attention to installation position of adjusting screw (2).

Apply a thin coat of grease to bush and screw threads,

Fig 1: Identifying Return Springs And Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration does not show wheel hub.

Twist roll pins (1) 90° with special tool 34 4 000 and detach.

Remove brake pads (2).

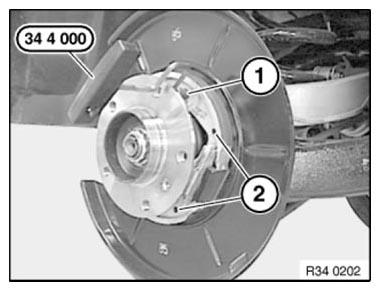

Fig 2: Identifying Roll Pins And Brake Pads

Courtesy of BMW OF NORTH AMERICA, INC.
