11 51 000 Removing and installing/replacing water pump (M62 / S62)
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
Drain off coolant and dispose of correctly.
Installation:
Vent cooling system and check for leaks. Refer to 17 00 005 DRAINING AND ADDING COOLANT (S62) .
Remove vibration damper, refer to 11 23 010 REMOVING AND INSTALLING/REPLACING VIBRATION DAMPER (S62) .
Remove thermostat housing, refer to 11 53 000 REMOVING AND INSTALLING/REPLACING COOLANT THERMOSTAT (S62) .
- Remove pulley.
- Remove coolant hose.

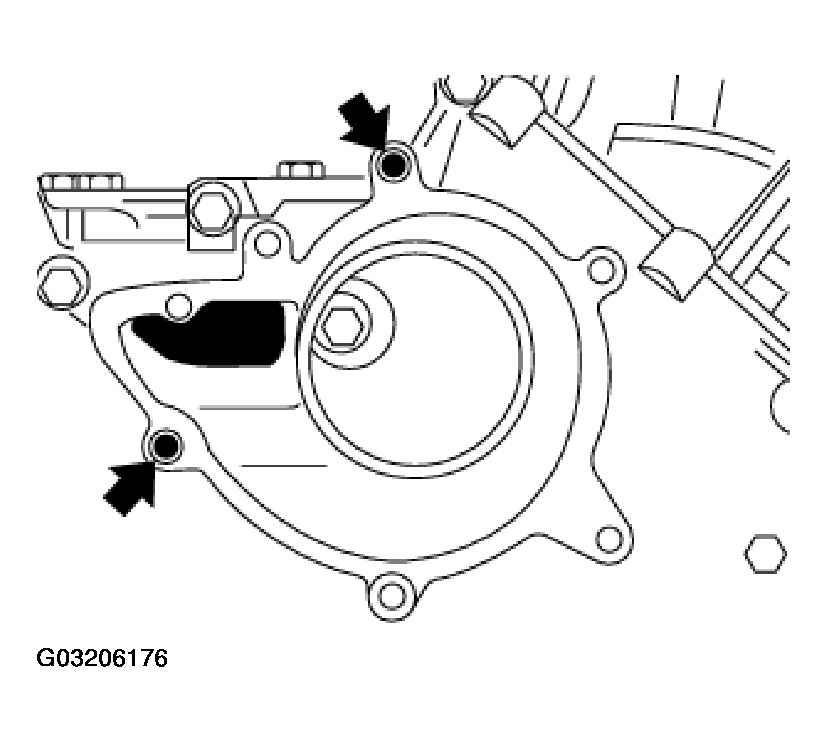

- Unfasten screws.
- Remove water pump.
Installation:
Make sure that sleeves are correctly seated.
Clean sealing faces.
Replace seal.
